MPN
220-P3-1200-X1

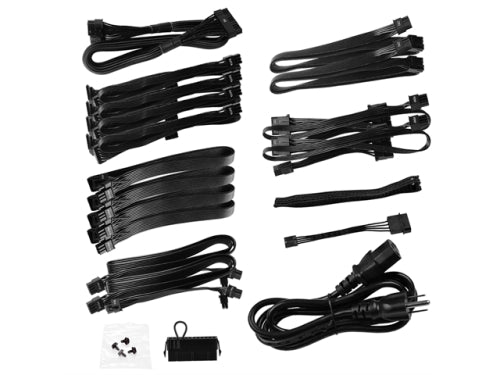

CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
2x 750mm (m)
PCIe Cable
2x 750mm, 900mm (m) 4x 750mm (m)
SATA Cable
4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable
2x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter
1x 100mm
AC Power
1x 1500mm (m)
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
8x 8pin (6+2)
SATA
12x
Four-Pin Peripheral
8x
Floppy
1x
POWER SPECS
AC Input
100-240V, 14-7A, 60/50Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 100A / 3A / 0.5A
125W / 125W / 1200W / 15W /6W
Total
1200W
ADDITIONAL DETAILS
Operating Temperature
0o to 50o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
