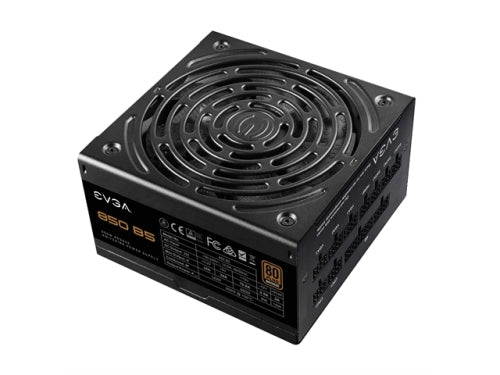

EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
Out Of Stock
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail
EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail

EVGA Power Supply 220-B5-0850-V1 B5 850W 80 Plus BRONZE Fully Modular Retail

$150.39
SHARE
MPN
220-B5-0850-V1
CABLE LENGTH
ATX Cable
1x 600mm (m)
EPS Cable
2x 600mm (m)
PCIe Cable
3x 550mm, 700mm (m)
SATA Cable
3x 500mm, 600mm, 700mm (m)
Four-Pin Peripheral Cable
1x 500mm, 600mm, 700mm (m)
Floppy Adapter
1x Molex to FDD Adapter
AC Power
1x 1500mm (m)
Modular Cable Type
Full
Molex to FDD
1x

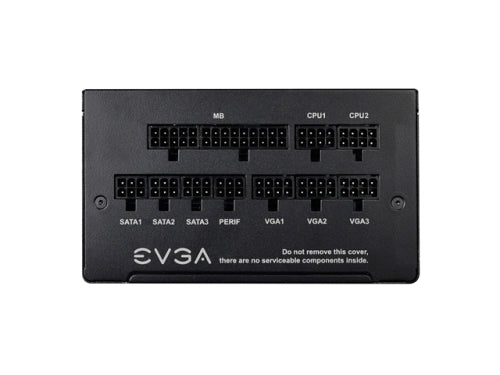

CONNECTOR QUANTITY
24 Pin ATX
1x 24pin (20+4)
EPS (CPU)
2x 8pin (4+4)
PCIe
6x 8pin (6+2)
SATA
9x
Four-Pin Peripheral
3x
Floppy
1x

POWER SPECS

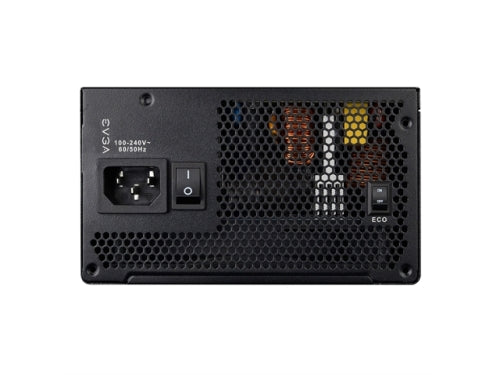

AC Input
100-240V-, 10-5A, 60/50Hz
Rail/Max Output
+3.3V/24A, 120W
+5V/24A, 120W
+12V/70.8A, 850W, 850W
+5Vsb/3.0A, 15W
-12V/0.5A, 6W
Total
850W

ADDITIONAL DETAILS
Operating Temperature
0o to 50oC
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Fluid Dynamic Bearing
