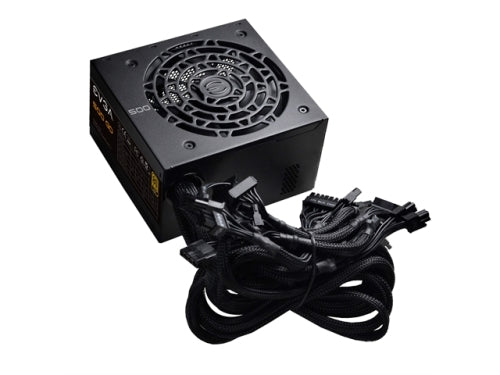

EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
Out Of Stock
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail
EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail

EVGA Power Supply 100-GD-0500-V1 500 GD 500W 80+GOLD 120mm Sleeve Bearing Retail

$81.39
SHARE
MPN
100-GD-0500-V1
CABLE LENGTH
ATX Cable
1x 600mm
EPS Cable
1x 600mm
PCIe Cable
1x 550mm, 700mm
SATA / Four-Pin Peripheral Cable
1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m)
AC Power
1x 1500mm (m)
Modular Cable Type
No

CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIe
2x8pin(6+2)
SATA
6x
Four-Pin Peripheral
3x
Floppy
1x

POWER SPECS
AC Input
110-240 VAC, 7-3A, 60/50 Hz
Rail
+3.3V
Max Output
20A
100W
Rail
+5V
Max Output
20A
100W
Rail
+12V
Max Output
41.6A
499.2W
500W
Rail
+5Vsb
Max Output
2.5A
3.6W
Rail
-12V
Max Output
0.3A
12.5W
Total
500W

ADDITIONAL DETAILS
Operating Temperature
0o to 40oC
Japanese Capacitors
Main
ECO Mode
No
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
120mm Sleeve Bearing
