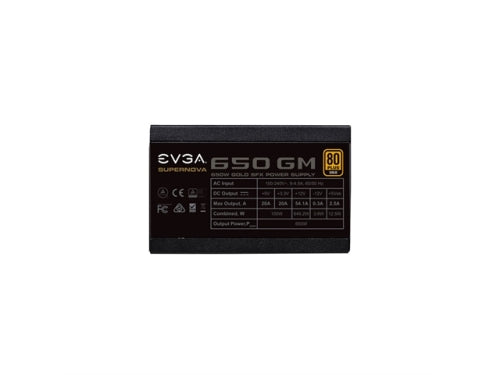

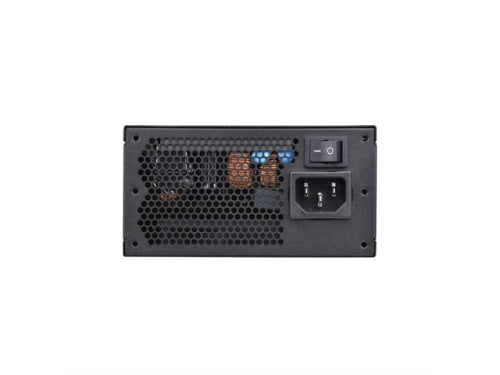

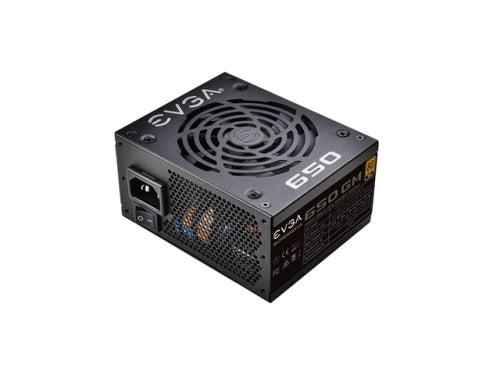

EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
NewOut Of Stock
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail
EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail

EVGA Power Supply 123-GM-0650-Y1 SuperNOVA 650 SM 650W 80+ Gold SFX Fully Modular Retail

$143.99
SHARE
MPN
123-GM-0650-Y1
CABLE LENGTH
ATX CABLE
1x 300mm (m)

EPS CABLE
1x 400mm (m)
PCIE CABLE
1x 400mm, 510mm (m) / 1x 510mm, 620mm (m)

SATA CABLE
2x 300mm, 410mm,520mm (m)
FOUR-PIN PERIPHERAL CABLE
1x 300mm, 410mm, 520mm, 630mm (m)

FLOPPY ADAPTER
1x 100mm (m)
AC POWER
1x 1500mm (m)

MODULAR CABLE TYPE
Full
MOLEX TO FDD
1x

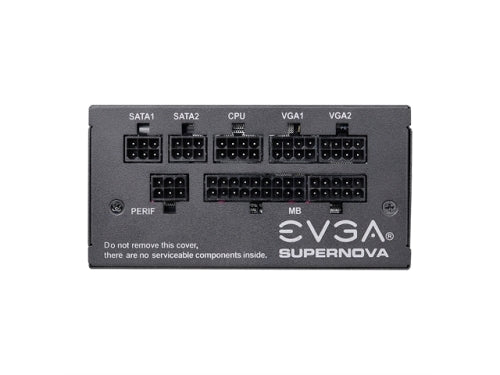

CONNECTOR QUANTITY
24 PIN ATX
1x

EPS (CPU)
1x 8pin (4+4)
PCIE
4x 8pin (6+2)

SATA
6x
FOUR-PIN PERIPHERAL
4x

FLOPPY
1x

POWER SPECS
AC Input
100-240 VAC, 9 - 4.5A, 50 - 60 Hz

Rail
+3.3V
Max Output
20A
100W

Rail
+5V
Max Output
20A
100W

Rail
+12V
Max Output
54.1A
649.2W
649.2W

Rail
+5Vsb
Max Output
2.5A
12.5W

Rail
-12V
Max Output
0.3A
3.6W

Total
650W at 40oC

ADDITIONAL DETAILS
OPERATING TEMPERATURE
0o to 40o C
JAPANESE CAPACITORS
100%
ECO MODE
Auto

MTBF
100,000 Hours
APPROVALS
TUV, CB, CE, FCC, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

FAN SIZE / BEARING
92mm Double Ball Bearing

Item Dimension (L"xW"xH")
11 x 4 x 8

Weight
3.30 LB
