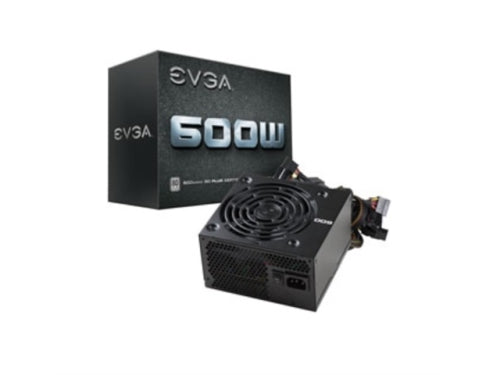

EVGA Power Supply 100-W1-0600-K1 600W 80+ +12V 120mm Fan Retail

MPN
100-W1-0600-K1
CABLE LENGTH
ATX Cable
1x 550mm
EPS Cable
1x 600mm
PCIe Cable
1x 550mm, 670mm
SATA Cable
2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable
1x 450mm, 570mm, 690mm (f)
Floppy Adapter
1x 810mm
AC Power
1x 1200mm (m)
Modular Cable Type
No
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIe
2x 8pin (6+2)
SATA
6x
Four-Pin Peripheral
3x
Floppy
1x
INPUT
Input Voltage
100 - 240 VAC
AC Input
10-5A
Input Frequency Range
50 - 60 Hz
Efficiency
80% Typical
OUTPUT
Rail / Max output :
+3.3V / 24A / 130W
+5V / 20A / 130W
+12V / 49A / 49A / 588W
-12V / 0.3A / 3.6W
+5Vsb / 3A / 15W
Total
600W at +40C
DDITIONAL DETAILS
Operating Temperature
0^o to 40^o C
Noise Level
24-26dBA Typical
Japanese Capacitors
No
ECO Mode
No
MTBF
100,000 Hours
Approvals
TUV, cUL, UL, CE, FCC, RCM, WEEE, RoHS
Fan Size / Bearing
120mm Sleeve Bearing
