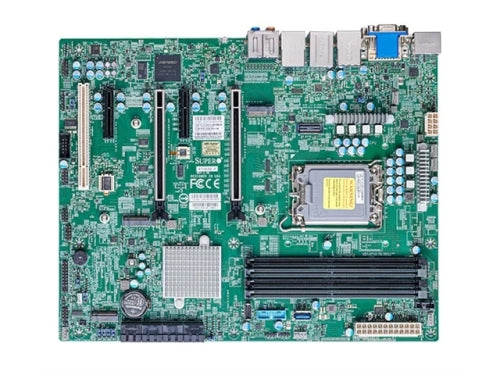

Supermicro Motherboard MBD-X13SAE-F-O W680 LGA1700 No Memory ATX Retail
New
Supermicro Motherboard MBD-X13SAE-F-O W680 LGA1700 No Memory ATX Retail

Supermicro Motherboard MBD-X13SAE-F-O W680 LGA1700 No Memory ATX Retail

$520.00
SHARE
Form Factor
ATX
Processor
CPU
12th Generation Intel CoreTM i3/i5/i7/i9 Processors
Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 16(8+8) cores
System Memory
Memory Capacity
4 DIMM slots
128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type
128GB
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel W680
SATA
Intel W680 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel PHY I219LM LAN controller, for AMT/vPro
Single LAN with Intel Ethernet i225LM
Single LAN with Realtek RTL8211F PHY (dedicated IPMI), Dedicated LAN for IPMI
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 2 port(s) (2 via header, 2 rear)
4 USB 3.2 Gen2 port(s) (4 rear type A)
3 USB 3.2 Gen1 port(s) (2 via header, 1 Vertical)
2 USB 3.2 Gen2x2 port(s) (1 rear type C, 1 via header)
Video Output
1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 3.0 x4,
2 PCI-E 5.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
Voltage
VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-20oC - 60oC (-4oF - 140oF)
