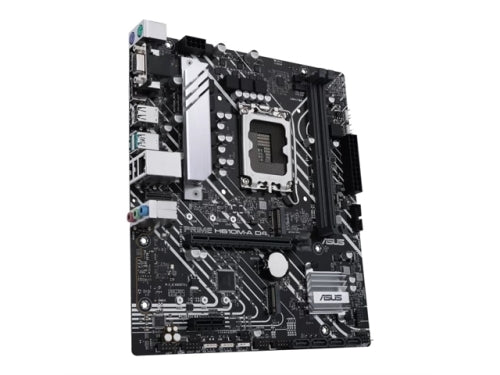

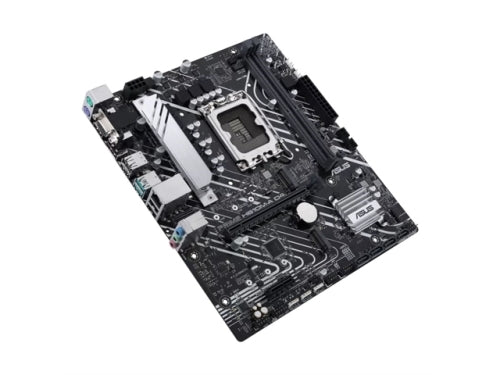

ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
New
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail
ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail

ASUS Motherboard PRIME H610M-A D4-CSM H610 LGA1700 Max64GB DDR4 PCI-Express Display Port/D-Sub/HDMI mATX Retail

$132.49
SHARE
CPU
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsNote1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Note2
Note1: Refer to www.asus.com for CPU support list.
Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered MemoryNote
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Note: Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPortNote2
1 x D-Sub port
1 x HDMI portNote3
Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Note2: Supports max. 4K60Hz as specified in DisplayPort 1.4.
Note3: Supports 4K60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet
Wireless and Bluetooth
V-M.2 slot only (Key E, CNVi and PCIe) Note
Note: Wi-Fi module is sold separately.
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODECNote
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub port
1 x V-M.2 slot (Key E)
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Including below info in 600 series refreshed NPI:
Supports 13th gen Intel CoreTM desktop processors.
BIOS update may be required to boot the 13th gen Intel CoreTM desktop processors
