MPN

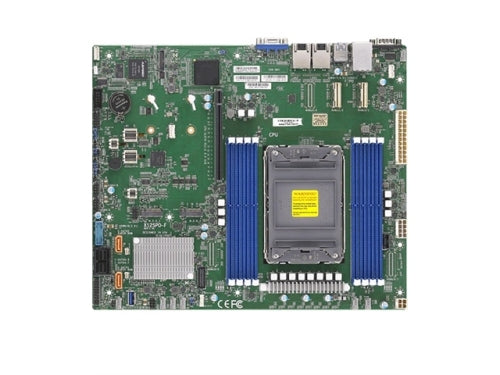

MBD-X12SPO-F-B
Physical Stats
Form Factor
ATX
Processor
CPU
3rd Gen Intel Xeon Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores
System Memory
Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz ECC 3DS , DDR4 LRDIMM, RDIMM
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C621A
SATA
Intel C621A controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i350 Gigabit Ethernet Controller
Input / Output
SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 port(s) (4 via header 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header 2 rear 1 type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 4.0 x16
M.2
M.2 Interface: 2 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Management
Software
SuperDoctor 5, SUM, KVM with dedicated LAN, SPM, Intel Node Manager, SSM, IPMI2.0, Watchdog
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
UID/Remote UID
Suspend static indicator LED
CPU / System Overheat LED
Temperature
CPU thermal trip support
PECI
FAN
7x 4-pin fan headers (up to 7 fans)
System level control
PWM fan speed control
Fan speed control
Overheat LED indication
Other Features
WOL
UID
RoHS
Chassis intrusion header
Chassis intrusion detection
ATX Power connector
ACPI power management
RoT
Operating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
