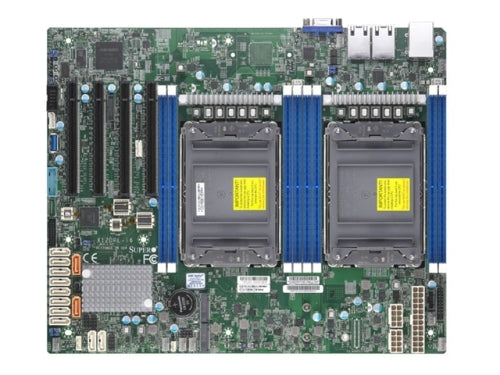

Supermicro Motherboard MBD-X12DPL-I6-B C621A LGA 4189 P+ Max.2TB DDR4 ATX Bulk
NewOut Of Stock
Supermicro Motherboard MBD-X12DPL-I6-B C621A LGA 4189 P+ Max.2TB DDR4 ATX Bulk

Supermicro Motherboard MBD-X12DPL-I6-B C621A LGA 4189 P+ Max.2TB DDR4 ATX Bulk

$738.49
SHARE
Form Factor
ATX
Processor/Cache
CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
System Memory
Memory Capacity
Up to 2TB RDIMM, DDR4-3200MHz, Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
Memory Type
3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
256GBRDIMM: 256GB
LRDIMM: 256GB
3DS LRDIMM: 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel C621A
SATA
Intel C621A controller for 12 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Graphics
ASPEED AST2600 BMC
Input / Output
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
4 PCI-E 4.0 x16
M.2
M.2 Interface: 2 PCI-E 4.0 x4
Form Factor: 2280/22110, 2280
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
Management
Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
System Management Software
IPMICFG
SMCIPMITool
IPMIView for Linux/Windows
Power Configurations
ACPI Power Management
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility
Temperature
CPU thermal trip support, PECI
LED
BMC/IPMI Heartbeat LED, UID/Remote UID
Other Features
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, NCSI header, Node Manager Support, RoT, UID
Operating Environment
Operating Temperature Range
10oC - 35oC (50oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
