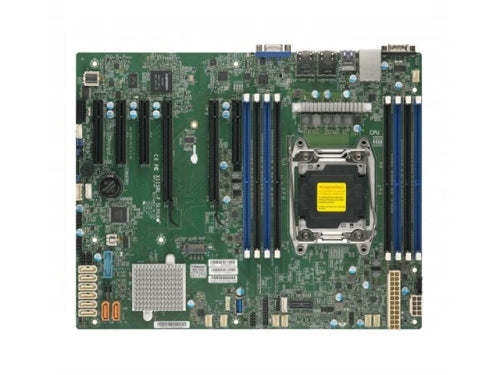

Supermicro Motherboard MBD-X11SRL-F-B Xeon W-2100 LGA 2066 C422 Max 512GB DDR4 PCI Express ATX Bulk Pack

Physical Stats
Form Factor
ATX
Processor/Cache
CPU
Intel Xeon W-2100 Processors, Intel Xeon W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
Cores / Cache
18 cores, 36 threads
Note
W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro
Note
To support 165W W-2200 CPUs, BIOS 2.0 and VRM update by Supermicro are required
System Memory
Memory Capacity
Up to 512GB ECC RDIMM, DDR4-2933MHz Up to 1TB Registered ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C422
SATA
Intel C422 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller
Graphics
Aspeed AST2500 BMC
Input / Output
SATA
8 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
TPM Header
Expansion Slots
PCI-E
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Management
Software
IPMI2.0, KVM with dedicated LAN, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT
FAN
7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature
PECI, CPU thermal trip support, Thermal Control for 6 Fan Connectors
LED
CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, UID
Operating Environment
Operating Temperature Range
0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non-Operating Relative Humidity Range
10% - 95% (non-condensing)
