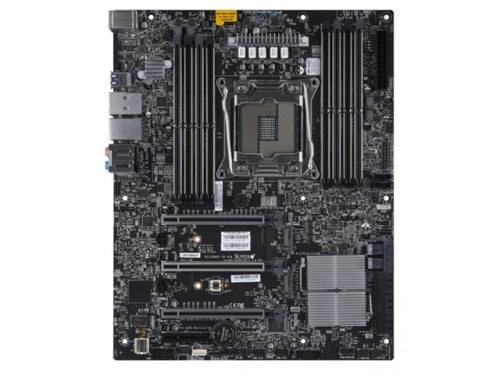

Supermicro Motherboard MBD-X11SRA-O Xeon Single Socket LGA 2066 C422 Max.256GB PCI Express ATX Retail
NewOut Of Stock
Supermicro Motherboard MBD-X11SRA-O Xeon Single Socket LGA 2066 C422 Max.256GB PCI Express ATX Retail

Supermicro Motherboard MBD-X11SRA-O Xeon Single Socket LGA 2066 C422 Max.256GB PCI Express ATX Retail

$406.49
SHARE
MPN
MBD-X11SRA-O
Physical Stats
Form Factor: ATX
Processor/Cache
CPU:
- Intel Xeon Processor Skylake-W , Intel Xeon Processor W Family.
- Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W
System Memory
Memory Capacity: Up to 256GB Registered ECC RDIMM, DDR4-2666MHz, Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots
Memory Type: 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes: 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage: 1.2V
On-Board Devices
Chipset: Intel C422
SATA:
- Intel C422 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
- iRST enabled, only SATA2 to SATA5 support RAID.
Network Controllers:
- Single LAN with Intel PHY I219LM LAN controller
- Single LAN with Aquantia 5G LAN chip AQC108
Audio: ALC 1220 7.1 HD Audio
Input / Output
USB:
- 6 USB 2.0 ports (2 rear + 4 headers),
- 6 USB 3.0 ports (4 rear + 2 headers),
- 2 USB 3.1 ports ( + 2 Type A)
Serial Port / Header: 1 COM Port (1 header)
TPM: 1 TPM Header
Expansion Slots
PCI-E:
- 3 PCI-E 3.0 x16,
- 1 PCI-E 3.0 x4
- 3xPCI-E3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCI-E3.0x4 slots
M.2:
- M.2 Interface: 2 PCI-E 3.0 x4
- Form Factor: 22110
- Key: M-Key (RAID 0,1 support)
- M-Key for SSD and Optane(up to Intel POR). Intel VROC licence kit is needed to enable RAID.
System BIOS
BIOS Type: UEFI 256Mb
Management
Software: AMT, SuperDoctor 5, Watchdog
PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 5 (4-pin), Chassis intrusion header, Monitors CPU voltages, Monitors for CPU Cores, System temperature, VBAT
FAN: 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control
Temperature: CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5
LED: CPU / System Overheat LED
Other Features: ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, RoHS, Voltage and Frequency Overclocking, WOL
Operating Environment
Operating Temperature Range: 0oC to 50oC (32oF to 122oF)
Non-Operating Temperature Range: -20oC to 60oC (-4oF to 140oF)
Operating Relative Humidity Range: 10% to 85% (non-condensing)
Non-Operating Relative Humidity Range: 10% to 95% (non-condensing)
Item Dimension ( L inch x W inch x H inch)
NA
Weight
5.00 lb
