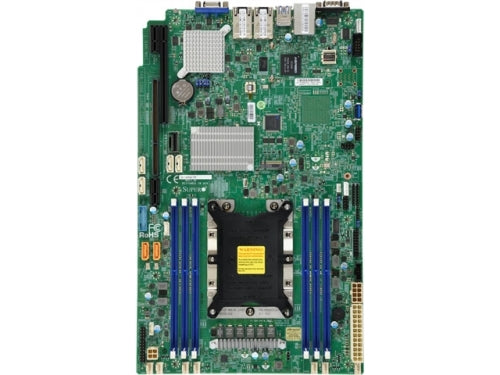

Supermicro Motherboard MBD-X11SPW-TF-O Xeon Single Socket S3647 C622 Max.768GB PCI Express WIO Retail

Supermicro Motherboard MBD-X11SPW-TF-O Xeon Single Socket S3647 C622 Max.768GB PCI Express WIO Retail

$584.49
SHARE
MPN
MBD-X11SPW-TF-O
Form Factor
Proprietary WIO
CPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache
Up to 28 cores
Memory Capacity
6x 288-pin DDR4 DIMM slots
Up to 768GB ECC 3DS LRDIMM
Up to 384GB ECC LRDIMM
Up to 192GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Chipset
Intel C622
SATA
Intel C622 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 10GBase-T with Intel X722 + X557
Graphics
Aspeed AST2500 BMC
USB
7 USB 2.0 ports (2 rear + 5 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output
1 VGA port(s)
Serial Port / Header
2 COM Ports (1 rear, 1 header(s))
TPM
TPM Header
PCI-E
1 PCI-E 3.0 x8 (in x16 slot), M.2
Interface: PCIe 3.0 x4 and SATA
Form Factor: 2280, 22110
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or late
Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN
7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature
CPU thermal trip support
PECI
LED
CPU / System Overheat LED
UID/Remote UID
Suspend static indicator LED
Other Features
ACPI power management, Control of power-on for recovery from AC power loss, RoHS, UID, WOL
Item Dimension (L inchxW inchxH inch)
14 x 11 x 3
Weight
3.00lb
