MPN

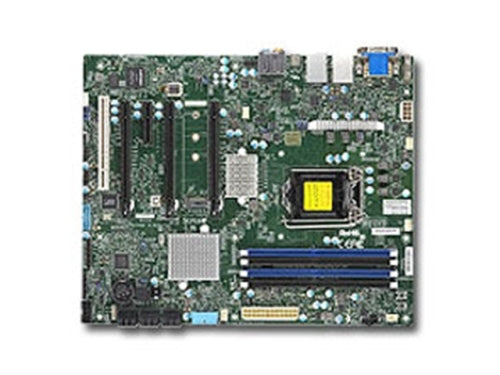

MBD-X11SAT-F-O
Processor/Cache
CPU:
- Single Socket H4 (LGA 1151) supports:
- Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7/i5/i3 series processors
CPU TDP up to 95W
System Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes: 16GB, 8GB, 4GB
Memory Voltage: 1.2V
Error Detection:
- Corrects Single-Bit Errors
- Detects Double Bit Errors (Using ECC Memory)
On-Board Devices
Chipset: Intel C236 Chipset
SATA:
- SATA3 (6Gbps) via C236 controller
- RAID 0, 1, 5, 10 support
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers:
- Intel I210-AT + Intel PHY i219LM Ethernet Controllers
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics: ASPEED AST2400 BMC
Input/Output
SATA: 6x SATA3 (6Gbps) ports
LAN:
- 2 x RJ45 Gigabit Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI LAN port
USB:
- 6x USB 3.0 ports (2 rear + 4 via headers)
- 6x USB 2.0 ports (2 rear + 4 via headers)
- 1 USB 3.1 (10 Gb/s) Type C ports (Rear, share with Thunderbolt and Display port)
Video: 1 DVI - D, 1 DP (Display Port), 1 HDMI, Display Port is Type C connector, support up to DP 1.2, HDMI support up to HDMI2.0
Audio: ALC 888S HD Audio
Serial Port/Header: 1x COM port (1 header)
SuperDOM: 2x SuperDOM (Disk on Module) ports with built-in power
TPM: 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express:
- 3x PCI-E 3.0 x16 slots (run at 16/NA/16 or 16/8/8)
- 1x PCI-E 3.0 x1 (in x4) slot
- 1x 5V PCI 32bit slot
System BIOs
BIOs Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOs Features:
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
Management
Software:
- AMT
- SuperDoctor 5
- vPro
- Watch Dog
- IPMI 2.0 with KVM Support
- SPM
-SUM
SMCBU and SMM
Power Configurations:
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
PC Health Monitoring
Voltage: Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages
FAN:
- Total of 5 fan headers supporting up to 5 fans
- 5 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED:
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
Other Features:
- Chassis intrusion detection
- Chassis intrusion header
- Chipkill support
- RoHS
Form Factor
ATX
