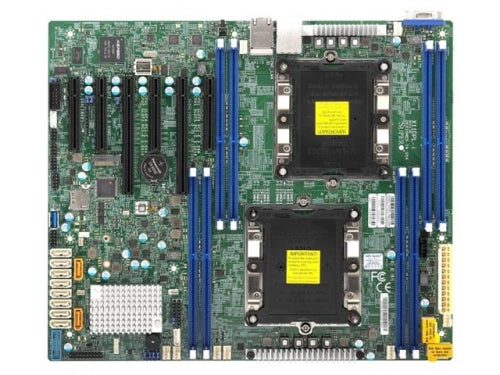

Supermicro Motherboard MBD-X11DPL-I-B Xeon Dual Socket S3647 C621 Max.512GB PCI Express ATX Brown Box
New
Supermicro Motherboard MBD-X11DPL-I-B Xeon Dual Socket S3647 C621 Max.512GB PCI Express ATX Brown Box

Supermicro Motherboard MBD-X11DPL-I-B Xeon Dual Socket S3647 C621 Max.512GB PCI Express ATX Brown Box

$580.99
SHARE
Form Factor
ATX
CPU
Intel Xeon Processor Scalable Family.
Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Memory Capacity
Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Chipset
Intel C621
SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Lewisburg
Marvell 88E1512 PHY
Video Output
1 VGA port(s)
Serial Port / Header
1 COM Port (1 header(s))
TPM
1 TPM Header
PCI-E
2 PCI-E 3.0 x16,
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)
M.2
Interface: PCIe 3.0 x4
Form Factor: 2260, 2280
BIOS Type
AMI UEFI
Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Power Configurations
ACPI Power Management
Voltage
+12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility
FAN
8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control
Temperature
CPU thermal trip support
PECI
LED
CPU / System Overheat LED
UID/Remote UID
Other Features
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, SDDC, UID, WOL
Item Dimension (L inchxW inchxH inch)
14 x 11 x 3
Weight
3.00lb
