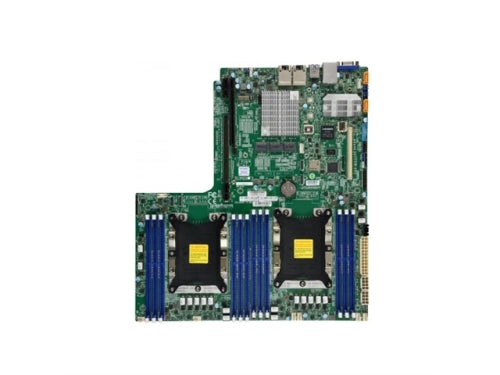

Supermicro Motherboard MBD-X11DDW-NT-B Xeon Dual Socket S3647 C622 Max.1.5TB PCIE Brown Box
NewOut Of Stock
Supermicro Motherboard MBD-X11DDW-NT-B Xeon Dual Socket S3647 C622 Max.1.5TB PCIE Brown Box

Supermicro Motherboard MBD-X11DDW-NT-B Xeon Dual Socket S3647 C622 Max.1.5TB PCIE Brown Box

$723.49
SHARE
MPN
MBD-X11DDW-NT-B
Physical Stats
Form Factor:12.3" x 13.4"
Dimensions:12.3" x 13.4" (31.24cm x 34.04cm)

Processor/Cache
CPU:Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s

System Memory
Memory Capacity:Up to 1.5TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots
Memory Type:2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
Memory Voltage:1.2V
Error Detection:Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset:Intel C622
SATA:Intel C622 controller for 14 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI:ASPEED AST2500
Network Controllers:Dual LAN with 10Gbase-T from C622
Graphics:Aspeed AST2500 BMC

Input / Output
LAN:2 RJ45 10GBase-T ports
USB:6 USB 3.0 ports (4 rear + 2 via header(s))
Video Output:1 VGA port(s)
TPM:1 TPM Header

Expansion Slots
PCI-E:1 PCI-E 3.0 x32 Left Riser Slot,
1 PCI-E 3.0 x16 Right Riser Slot,
1 PCI-E 3.0 x16 for Add-On-Module (AOM)
M.2:Interface: PCIe 3.0 x4
Form Factor: M-Key 2242, 2260, 2280, 22110

System BIOS
BIOS Type:UEFI 256Mb

Management
Software:Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog

PC Health Monitoring
Voltage:+1.8V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5+1 Phase-switching voltage regulator, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN:5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Overheat LED indication, PWM fan speed control, Thermal control tachometer fan connectors
Temperature:CPU thermal trip support
LED:CPU / System Overheat LED
UID/Remote UID
Other Features:Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, Halogen Free, UID

Item Dimension (L inchxW inchxH inch)
13 x 14 x 1
Weight
3.00lb
