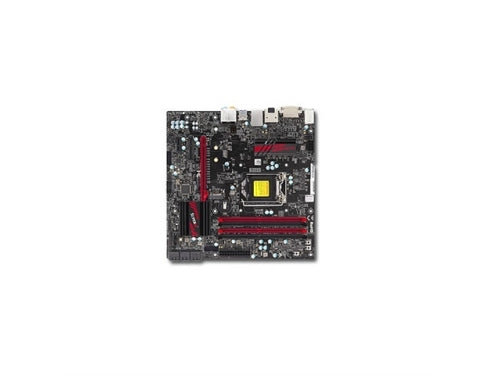

MPN
MBD-C7Z170-M-P
Form Factor
microATX
Dimensions
9.6" x 9.6", (24.4 cm x 24.4 cm)
CPU
Intel 6th Gen Core i7/i5/i3 series, Intel Celeron, Intel Pentium processors, CPU TDP support up to 115W TDP
Single Socket H4 (LGA 1151)
System Memory
4x 288-pin DDR4 DIMM slots
Memory Capacity
Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type
Frequency up to 3200MHz(OC) non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
72-bit, 288-pin (UDIMM) gold-plated DIMMs
Support overclocking up to 3200MHz
DIMM Sizes
16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
1.2V
Chipset
Intel Z170 Express Chipset
SATA
SATA3 via PCH w/ RAID 0, 1, 5, 10
Network Controllers
Intel i219V Controller
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
RealTek ALC1150 High Definition Audio
Serial ATA
6x SATA3 (6Gbps) ports
LAN
1x RJ45 Gigabit Ethernet LAN port
USB
6x USB 3.0 ports (4 rear, 2 via headers)
4x USB 2.0 ports (2 rear, 2 via headers
2x USB 3.1 ports (via headers) - 10 Gb/s
1x Thunderbolt AIC header
Input / Output Audio
7.1 HD Jacks
Display
1x DVI - D, 1x DP (Display Port), 1x HDMI
Serial Port / Header
1x COM port (header)
TPM
1x TPM Header
PCI-Express
1 PCI-E 3.0 x16 slot
1 PCI-E 3.0 x4 slot
1 PCI-E 3.0 x1 slot
1 PCIe M.2 (PCIe x4 2260/2280/22110)
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support
Software
SuperDoctor 5
Watch Dog
Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on
Voltage
Monitors for CPU Cores, +12V, +3.3V, +5V, VBAT, HT, Memory, Chipset Voltages.
5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
Total of five 4-pin fan headers supporting up to 5 fans
5x fans with tachometer status monitoring Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
+5V Standby alert LED
Other Features
Chassis intrusion detection
Chassis intrusion header
Item Dimension (L"xW"xH")
N/A
Weight
5.00 lb
