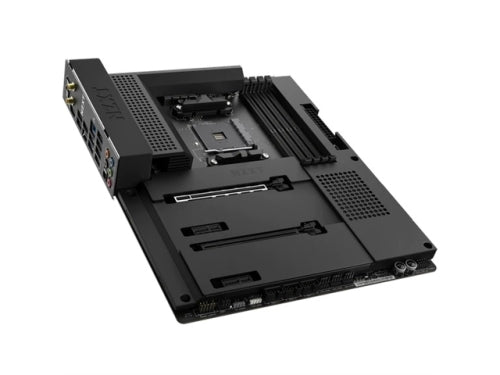

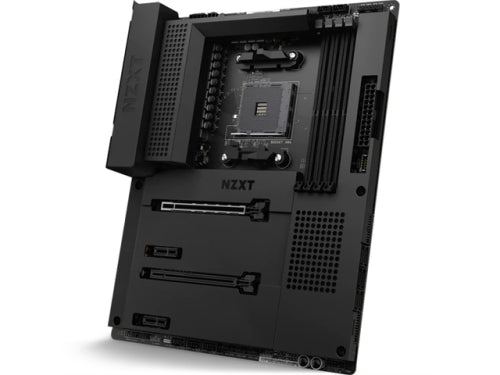

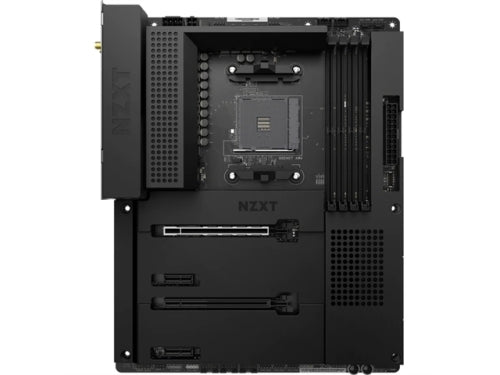

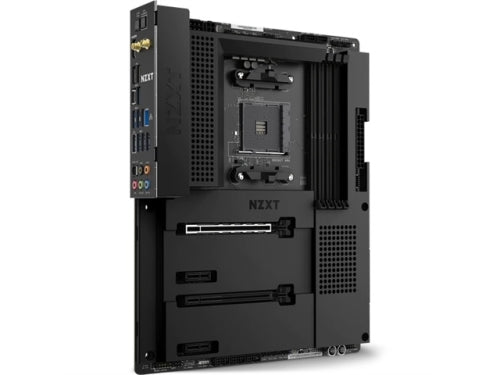

NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
Out Of Stock
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail
NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail

NZXT Motherboard N7-B55XT-B1 B550 AMD Socket AM4 128GB DDR4 PCIE HDMI/USB ATX Retail

$244.49
SHARE
MPN
N7-B55XT-B1
CPU
AMD Socket AM4 Ryzen Processors (3000, 4000, and 5000 Series Processors)
Supported
AMD Ryzen 5 3400G and Ryzen 3200G
Not Supported
Chipset
AMD
B550
Memory
DIMM Slots
4
Max Memory Support
128GB
Memory Architecture
Dual-Channel
OC Frequency (Vermeer CPUs)
4666+ MHz
OC Frequency (Matisse CPUs)
4666+ MHz
OC Frequency (Renoir APUs)
4733+ MHz
Base Frequency
3200/ 2933/ 2667/ 2400/ 2133
Type
ECC and non-ECC, un-buffered memory
XMP Support
Supported
Integrated Graphics
AMD Radeon Vega Series Graphics in Ryzen Series APU
HDMI
HDMI Max Resolution
4096x2160 at 60Hz
Max Shared Memory
16GB with 32GB installed
Microsoft PlayReady
Supported
Multi-GPU Support
AMD 2-Way CrossFireX Technology
Supported
Expansion Slots
PCIe x16 (x16 mode)
1 (Vermeer and Matisse - PCIe 4.0, Renoir - PCIe 3.0)
PCIe x16 (x4 mode)
1
PCIe 3.0 x1
2
Storage (Chipset)
M.2 Type 2242/2260/2280 (x4 mode)
1 (Vermeer and Matisse - PCIe 4.0, Renoir - PCIe 3.0)
M.2 Type 2242/2260/2280 (PCIe 3.0 x2 and SATA mode)
1
SATA 6Gb/s
6x (M2_2 and SATA3_5_6 share lanes)
RAID 0/1/5/10 Support
Supported
LAN
Realtek
RTL8125BG 2.5G
Wireless
Intel Dual-Band Wireless
AX210 Wi-Fi 6E
Protocol
802.11 a/b/g/n/ac/ax
Frequency Bands
2.4 / 5 / 6GHz
MU-MIMO Support
Supported
Bluetooth
V5.2
Audio
Realtek
ALC1220 Codec
Channels
8-Channel High Definition Audio
Playback
32-bit / 192kHz DAC
Capacitors
Nichicon Fine Gold Series
Rear I/O
USB 3.2 Gen 2 (Type-C)
1
USB 3.2 Gen 2 (Type-A)
3
USB 3.2 Gen 1 (Type-A)
4
USB 2.0
2
HDMI 2.1
1
Wireless Antenna
2 (2T2R)
LAN (RJ45) Port
1
5.1-Channel Audio Jacks
1
Optical S/PDIF
1
BIOS Flashback Button
1
Clear CMOS Button
1
Internal I/O
M.2 (M Key), Type 2242/2260/2280
1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 and SATA mode)
M.2 (E Key) (For wireless cards)
1
SATA 6Gbps Ports
6
USB 3.2 Gen 2 Header (Type-C)
1
USB 3.2 Gen 1 Header
1 (Up to 2 ports)
USB 2.0 Header
3 (Up to 6 ports)
Front Panel Audio
1
CPU_FAN Connector
1 (Up to 24W)
AIO_PUMP Connector
1 (Up to 24W)
SYS_FAN Connector
5 (Up to 24W)
NZXT RGB LED Header
2
5V ARGB Header
1
12V RGB Header
1
24-pin EATX Power
1
8-pin ATX 12V Power
1
4-pin ATX 12V Power
1
Power Button
1
Reset Button
1
POST LEDs
4
General
Operating System
Windows 10 64-bit
Form Factor
ATX
