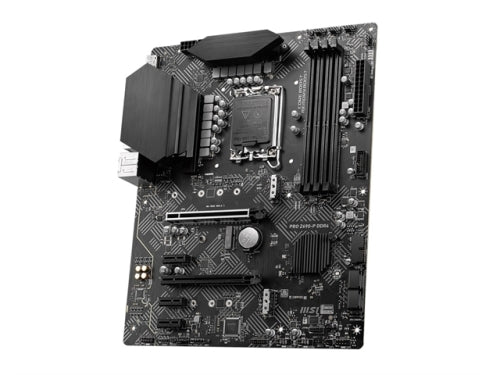

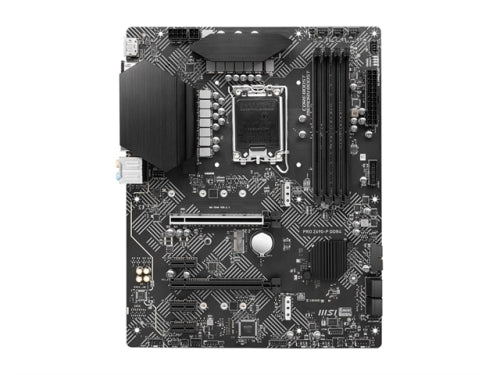

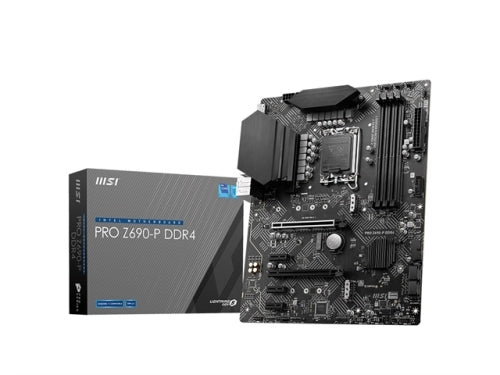

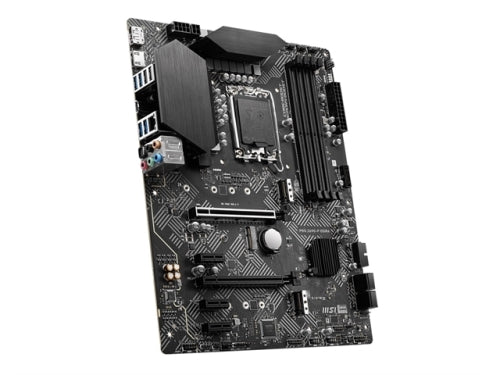

MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
NewOut Of Stock
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail
MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail

MSI Motherboard PRO Z690-P DDR4 Z690 S1700 Max128GB DDR4 PCIE ATX Retail

$219.49
SHARE
CPU (MAX SUPPORT)
i9
SOCKET
1700
CHIPSET
Intel Z690 Chipset
DDR4 MEMORY
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
128
PCI-E X16
2
PCI-E X1
3
SATAIII
4
M.2 SLOT
2
RAID
0/1/5/10
TPM (HEADER)
1
LAN
Realtek RTL8125BG 2.5Gbps LAN controller
USB 3.2 PORTS (FRONT)
4(Gen 1, Type A)
USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
AUDIO PORTS (REAR)
Realtek ALC897 Codec
DISPLAYPORT
1
HDMI
1
DIRECTX
12
FORM FACTOR
ATX
CROSSFIRE
Y
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
