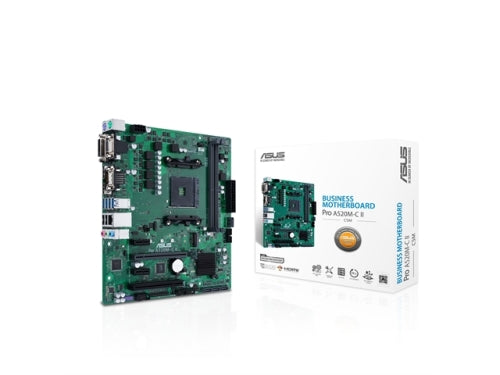

ASUS Motherboard PRO A520M-C II/CSM AMD AM4 Ryzen5000/4000/3000 A520 DDR4 HDMI/DP mATX  Retail
Out Of Stock
ASUS Motherboard PRO A520M-C II/CSM AMD AM4 Ryzen5000/4000/3000 A520 DDR4 HDMI/DP mATX  Retail

ASUS Motherboard PRO A520M-C II/CSM AMD AM4 Ryzen5000/4000/3000 A520 DDR4 HDMI/DP mATX Retail

$107.99
SHARE
MPN
PRO A520M-C II/CSM
CPU
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Refer to www.asus.com for CPU support list.
Chipset
AMD A520 Chipset
Memory
DDR4
4866(O.C.)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/346(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
ECC memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.2
1 x D-Sub
1 x DVI-D
Graphics specifications may vary between CPU types.
The DVI-D port and the DisplayPort cannot work at the same time. Only the DVI-D port functions when the two ports are both connected.
Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Intrernal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPC debug header
1 x LPT header
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design and Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection
TPM 2.0 IC Onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User manual
Form Factor
microATX
24.4cm x 22.9cm
