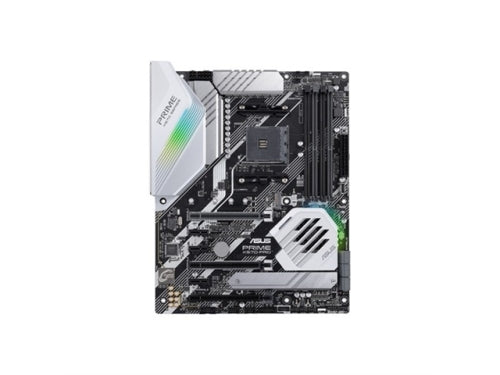

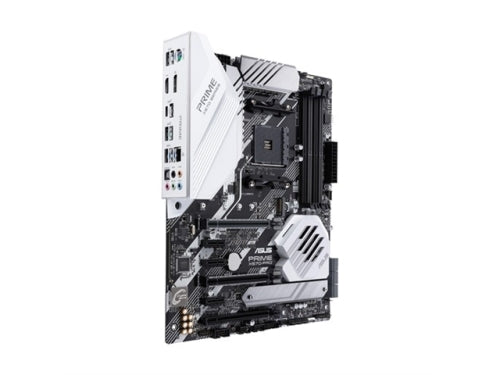

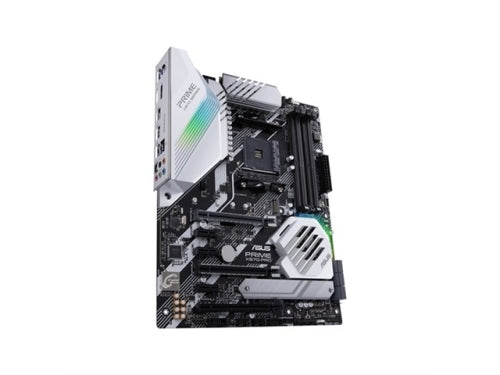

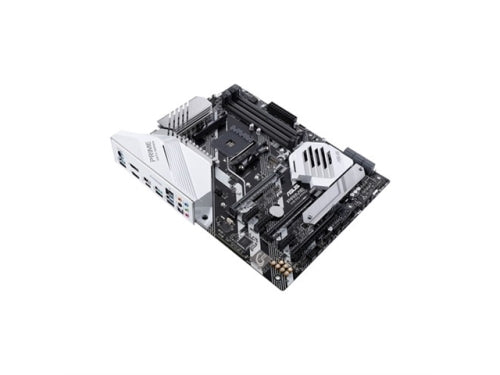

ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
New
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail
ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail

ASUS Motherboard PRIME X570-PRO AMD AM4 Ryzen X570 Max.128GB DDR4 ATX Retail

$285.99
SHARE
MPN
PRIME X570-PRO
CPU
AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Refer to www.asus.com for CPU support list
Due to CPU limitation, CPU cores supported varies by processors.
Chipset
AMD X570
Memory
3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
The maximum memory capacity supported vary depending on the CPU you installed.
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 at 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 at 60 Hz
Multi-GPU Support
3rd and 2nd Gen AMD Ryzen Processors
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
3rd Gen AMD Ryzen Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1
Storage
3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Intel I211-AT
ASUS LAN Guard
Audio
Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- EMI protection cover to prevent electrical noise to affect the amplifier quality
Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
DIGI+ VRM: Digital power design with Dr. MOS
EPU Guidance
TPU Insight
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM - Digital power design with Dr. MOS
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlot - Protect your graphics card Investment
ASUS OptiMem
- Improved DDR4 Stability
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- Armoury Crate
- Pre-mounted I/O Shield
ASUS Quiet Thermal Solution :
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Internal I/O Ports
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode and PCIE mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x PCH_FAN (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x Water Pump header (4-pin)
1 x T_Sensor Connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
Users manual
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Q-connector(s) (1 in 1)
1 x Extension cable for Addressable LED
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
