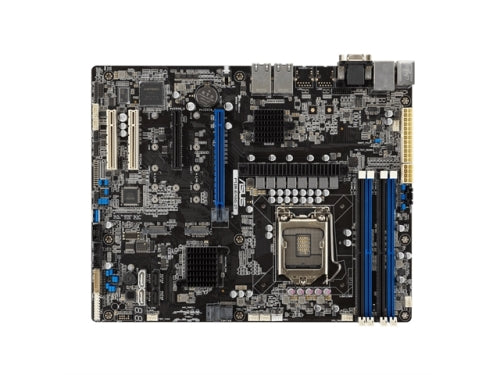

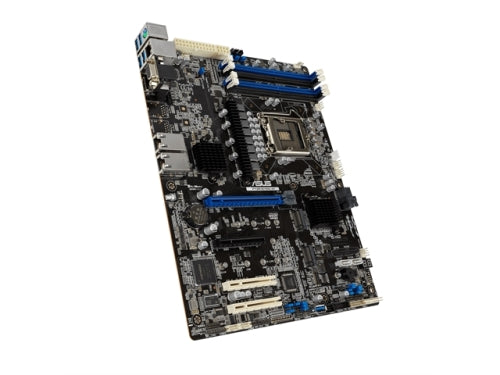

ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box
ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box
ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box
ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box
ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box
ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box

ASUS Motherboard P12R-E/10G-2T C256 LGA1200 Max128GB DDR4 PCI-E ATX Brown box

$502.49
SHARE
MPN
P12R-E/10G-2T
Processor / System Bus
1 x Socket LGA1200
Intel PentiumTM processors
Intel Xeon E Processors
Core Logic
Intel C256 Chipset
Memory
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB
Note: Refer to support page for more information
Expansion Slots
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
Form Factor
ATX (12"x9.6", 305mm x 244mm)
ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
Storage
Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA and PCIe mode Note1
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM Note2
On Board I/O
1 x VGA HeaderNote2
1 x HDMINote3
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header

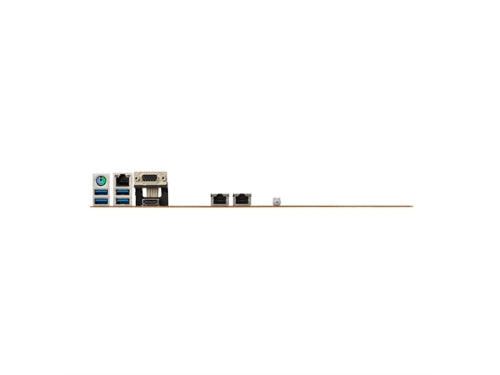

Back I/O Ports
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
Management Solution
ASUS Control Center Enterprise (Optional)
ASMB10-iKVM for KVM-over-Internet (Optional)
Environment
Operation temperature: 10oC to 50oC
Non operation temperature: -40oC to 70oC
Non operation humidity: 20% to 90% ( Non condensing)
Note: The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
Accessories
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
4 x SATA 6G cables
1 x Plate for LGA1200
Bulk Pack (10-in-1)
1 x Support CD
1 x I/O shield
1 x Plate for LGA1200
Monitoring
CPU Temperature
Fan RPM
Note
1.Gen4 x4 Link and Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal
2.VGA from BMC
3.HDMI (useable only with iGPU)
