Platform
Desktop
Market Segment
Mainstream Desktop
Product Family
AMD RyzenTM Processors
Product Line

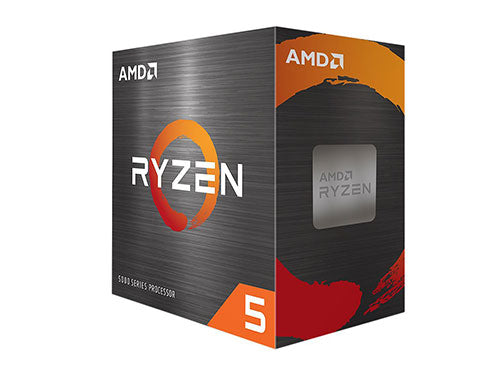

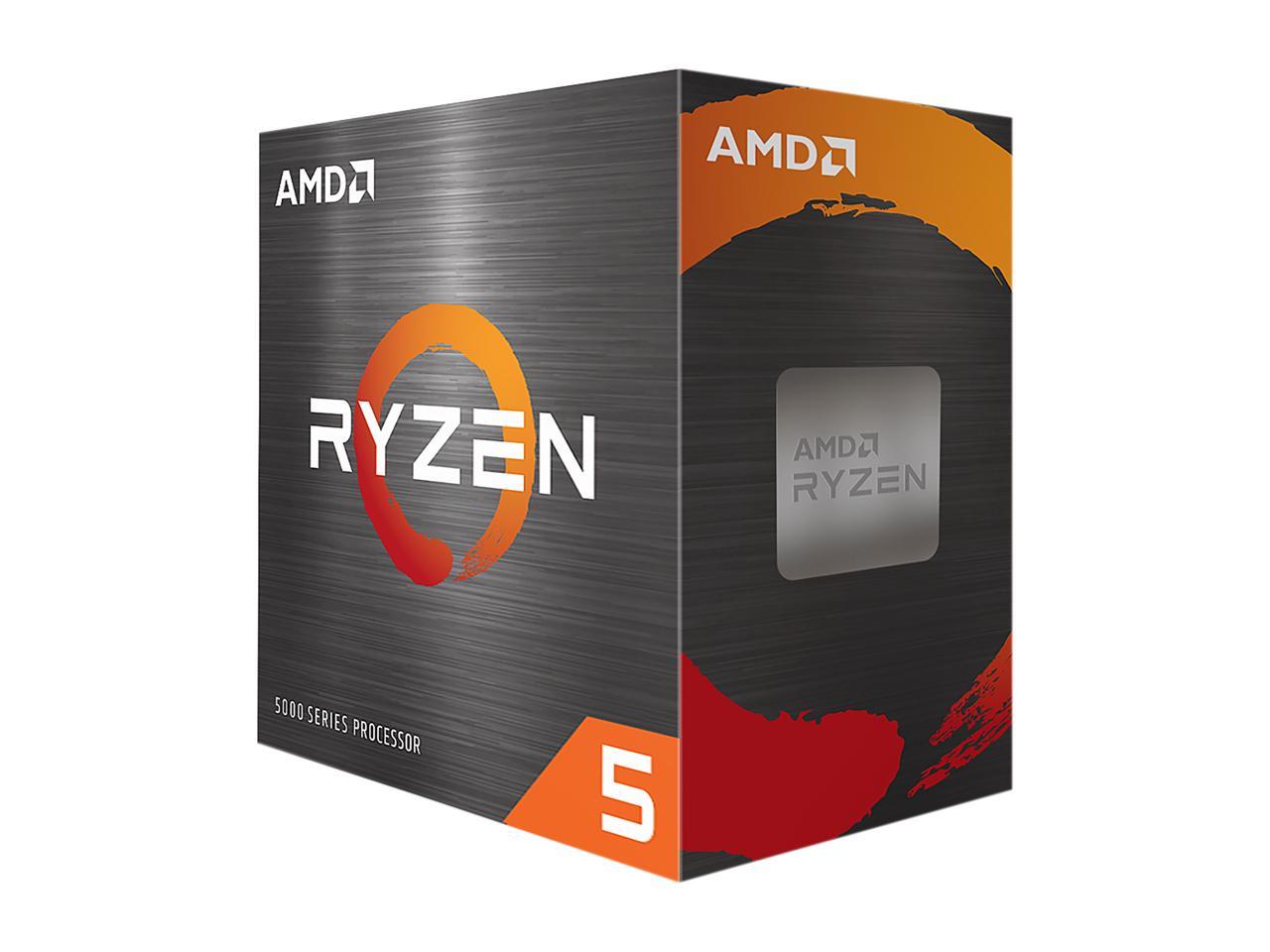

AMD RyzenTM 5 Desktop Processors
Consumer Use
Yes
Regional Availability
Global, China, NA, EMEA, APJ, LATAM
Former Codename
"Vermeer"
Architecture
"Zen 3"
Number of CPU Cores
6
Multithreading (SMT)
Yes
Number of Threads
12
Max. Boost Clock
Up to 4.4GHz
Base Clock
3.5GHz
L1 Cache
384KB
L2 Cache
3MB
L3 Cache
32MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Processor Technology for I/O Die
12nm (Globalfoundries)
CPU Compute Die (CCD) Size
74mm2
I/O Die (IOD) Size
125mm2
Package Die Count
2
Unlocked for Overclocking
Yes
CPU Socket
AM4
Socket Count
1P
Supporting Chipsets
X570
X470
X370
B550
B450
B350
A520
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

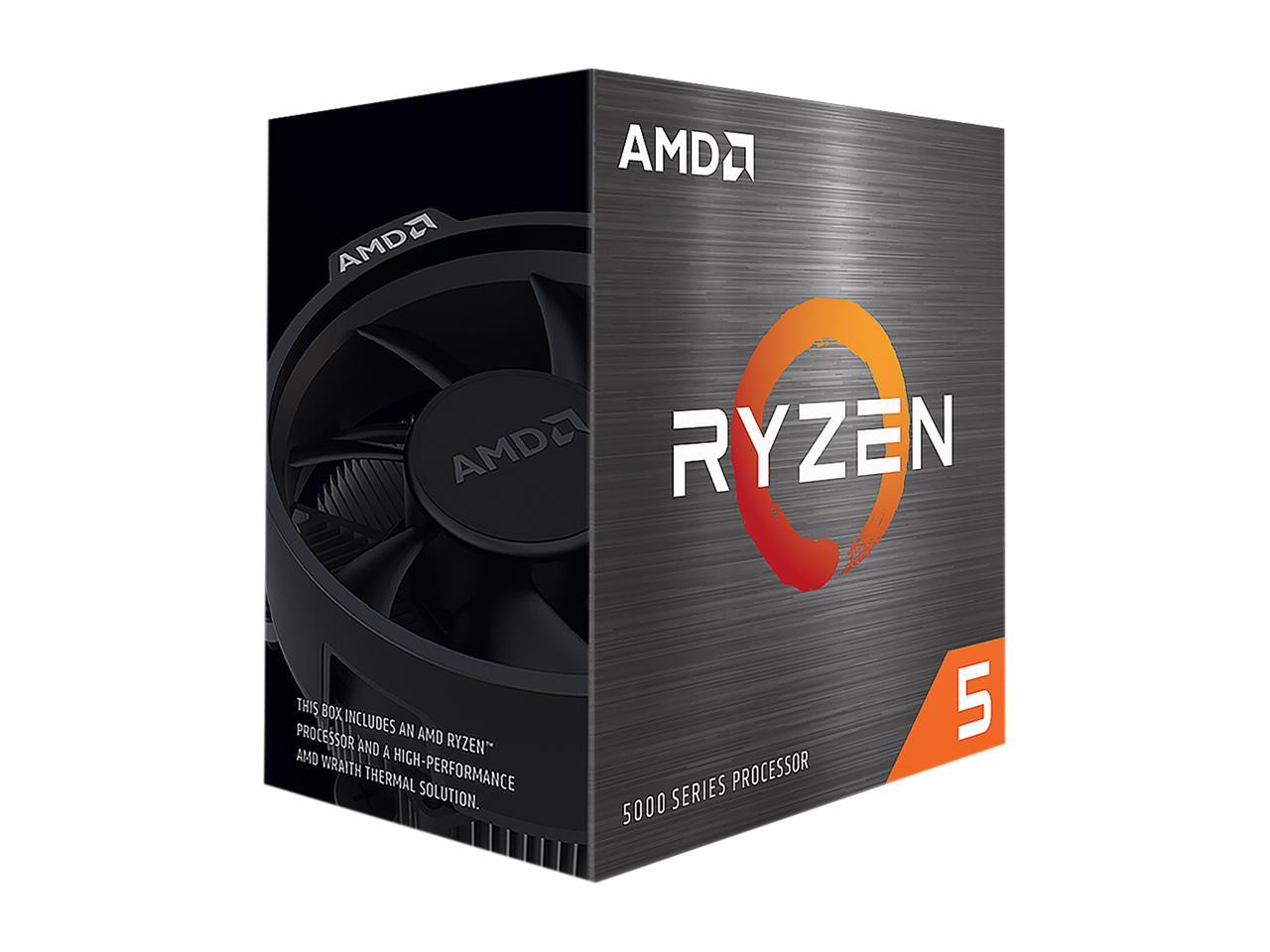

Thermal Solution (PIB)
AMD Wraith Stealth
Max. Operating Temperature (Tjmax)
90oC
OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Note: Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
0
Native SATA Ports
2
PCI Express Version
PCIe 4.0
Native PCIe Lanes (Total/Usable)
24/20
Additional Usable PCIe Lanes from Motherboard
AMD X570 : 16x Gen 4
AMD X470 : 2x Gen 3
AMD X470 : 8x Gen 2
NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
System Memory Specification
Up to 3200MHz
Max Memory Speed
2x1R : DDR4-3200
2x2R : DDR4-3200
4x1R : DDR4-2933
4x2R : DDR4-2667
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics
No
Graphics Model
Discrete Graphics Card Required
Key Features
Supported Technologies
AMD StoreMI Technology
AMD "Zen 3" Core Architecture
AMD RyzenTM VR-Ready Premium
