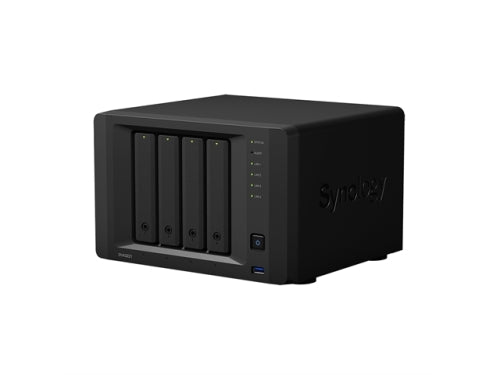

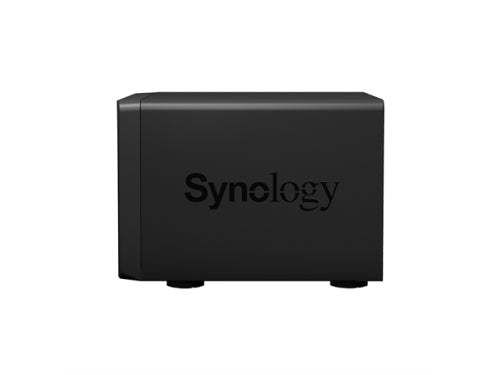

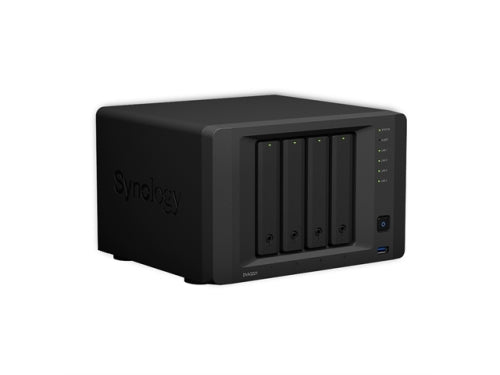

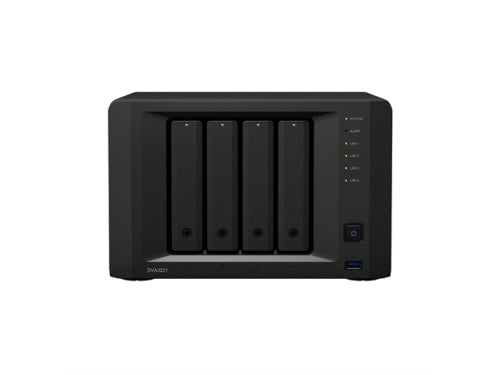

Synology Network Video Recorder DVA3221 4bay desktop NVR Atom C3538 8GB DDR4 108TB Retail

MPN
DVA3221
CPU
CPU Model
Intel Atom C3538
CPU Architecture
64-bit
CPU Frequency
Quad Core 2.1 GHz
Hardware Encryption Engine (AES-NI)
Yes

GPU
GPU Model
NVIDIA GeForce GTX 1650
Notes
Display output is not supported.

Storage
Drive Bays
4
Maximum Drive Bays with Expansion Unit
14 (DX517 x 2)
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity
64 TB (16 TB drive x 4) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units
224 TB (16 TB drive x 14) (Capacity may vary by RAID types)
Maximum Single Volume Size
108 TB
Hot Swappable Drive
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit.
Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.0 Port
3
eSATA Port
2
COM Port
1

Others
Wake on LAN / WAN
Yes
System Fan
120 mm x 120 mm x 1 pcs
Fan Speed Mode
Cool Mode
Quiet Mode
Full-Speed Mode
Power Recovery
Yes
Noise Level
28.3 dB(A)
Scheduled Power On / Off
Yes
Power Supply Unit / Adapter
250 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
43.92 W (Access)
28.43 W (HDD Hibernation)
British Thermal Unit
149.86 BTU/hr (Access)
97.01 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Temperature
Operating Temperature
0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RH

Certification
FCC
CE
BSMI
EAC
VCCI
RCM

Environment
RoHS Compliant

Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1

Optional Accessories
DDR4 ECC SODIMM: D4ECSO-2666-16G
Expansion Units: DX517
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5200
VisualStation: VS960HD/VS360HD
Surveillance Device License Pack
Notes
The original non-ECC memory modules must be removed before the optional ECC memory modules can be installed.

Surveillance Station

Video Analysis
Deep Video Analytics Feature
People and vehicle detection
People counting
Face recognition
Intrusion detection
Maximum Number of Deep Video Analytics Tasks
6
Maximum Number of Registrations Supported by Face Database
10,000

General Specifications
Maximum IP cam
32 (including 8 Free License)
Total FPS (H.264)
960 FPS at 720p (1280x720), 32 Channels
448 FPS at 1080p (1920x1080), 32 Channels
280 FPS at 3M (2048x1536), 28 Channels
190 FPS at 5M (2591x1944), 19 Channels
130 FPS at 4K (3840x2160), 13 Channels
Total FPS (H.265)
960 FPS at 720p (1280x720), 32 Channels
960 FPS at 1080p (1920x1080), 32 Channels
320 FPS at 3M (2048x1536), 32 Channels
200 FPS at 5M (2591x1944), 20 Channels
150 FPS at 4K (3840x2160), 15 Channels
Video Codec
H.264
H.264+
H.265
H.265+
MJPEG
MPEG-4
MxPEG (not supported by Deep Video Analytics tasks)
Audio Codec
AAC
AMR
G711
G726
PCM
Notes
Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Total FPS may be affected by other services running at the same time (e.g., archive tasks performed by Archive Vault).
The maximum channel number also includes devices installed on Virtual DSM.

System Services

File System
Internal Drives
Btrfs
EXT4

Storage Management
Maximum Internal Volume Number
64
Supported RAID Type
Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration
Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs
Synology Hybrid RAID
RAID 10
RAID 1
RAID 5
RAID 6
Volume Expansion by Adding a HDD
Synology Hybrid RAID
JBOD
RAID 5
RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type
Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10

File Services
File Protocol
CIFS/AFP/NFS/FTP/WebDAV

Account and Shared Folder
Maximum Local User Accounts
2,048
Maximum Local Groups
256
Maximum Shared Folder
512

General Specifications
Networking Protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
Google Chrome
Firefox
Supported Language
English, Deutsch, Franais, Italiano, Espaol, Dansk, Norsk, Svenska, Nederlands, , Polski, Magyar, Portugus do Brasil, Portugus Europeu, Trke, esk, , , , ,

VPN Server
Maximum Connections
30
