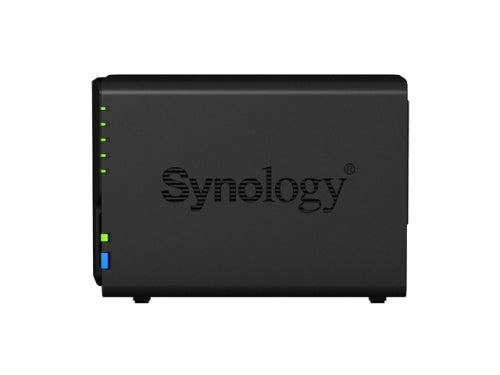

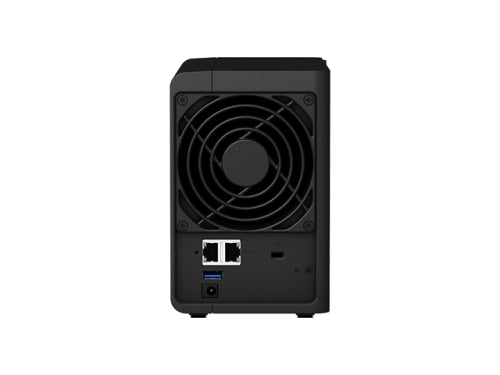

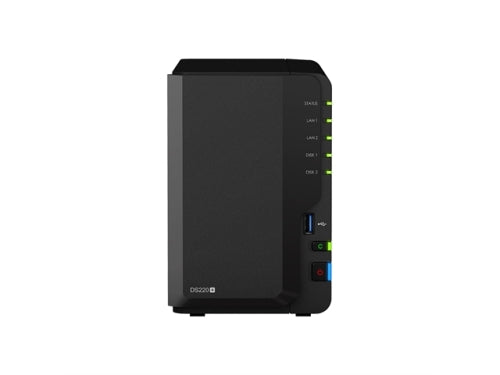

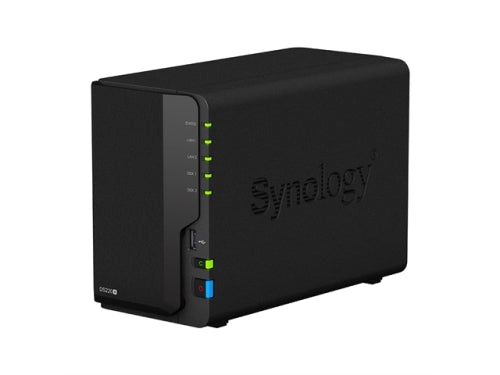

Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
NewOut Of Stock
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail
Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail

Synology Network Attached Storage DS220+ 2bay NAS DiskStation (Diskless) Retail

$343.99
SHARE
MPN
DS220+
CPU
CPU Model
Intel Celeron J4025
CPU Architecture
64-bit
CPU Frequency
2-core 2.0 (base) / 2.9 (burst) GHz
Hardware Encryption Engine (AES-NI)
Yes
Storage
Drive Bays
2
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Single Volume Size
108 TB
Hot Swappable Drive
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
Each internal volume (may consist of multiple drives) is expandable up to 108TB.
External Ports
RJ-45 1GbE LAN Port
2 (with Link Aggregation / Failover support)
USB 3.0 Port
2
USB / SD Copy
Yes
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access is purchased separately in Package Center
Others
System Fan
92 mm x 92 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Brightness Adjustable Front LED Indicators
Yes
Power Recovery
Yes
Noise Level
19.3 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
60 W
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
14.69 W (Access)
4.41 W (HDD Hibernation)
British Thermal Unit
50.12 BTU/hr (Access)
15.05 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A) Temperature: 24.25-25.75oC Humidity: 58.2-61.8%
Temperature
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-5oF to 140oF)
Relative Humidity
5% to 95% RH
Certification
EAC
VCCI
CCC
RCM
KC
FCC
CE
BSMI
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
AC Power Cord X 1
RJ-45 LAN Cable X 2
Quick Installation Guide X 1
