Supermicro System SYS-6019P-WTR 1Y Xeon S3647 4x3.5

Supermicro System SYS-6019P-WTR 1Y Xeon S3647 4x3.5" Hot-swap SATA3 PCIE VGA 750W Redundant Power Supplies Brown Box

$1,749.99
SHARE
MPN
SYS-6019P-WTR
Motherboard
Super X11DDW-L

Processor/Cache
CPU:Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors,Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:Up to 28 Cores with Intel HT Technology

System Memory
Memory Capacity:12 DIMM slots
Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset:Intel C621 chipset
SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers:Dual LAN with Gigabit Ethernet from C621
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:ASPEED AST2500 BMC

Input / Output
SATA:4 SATA3 (6 Gbps) ports
LAN:2 RJ45 Gigabit Ethernet ports
1 RJ45 Dedicated IPMI LAN port
USB:4 USB 3.0 ports (rear)
Video:1 VGA port
DOM:2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type:AMI 32Mb SPI Flash ROM

Management
Software:Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor 5
Watch Dog
Power Configurations:ACPI / APM Power Management

PC Health Monitoring
CPU:Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis
Form Factor:1U Rackmount
Model:CSE-815TQC-R706WB2

Dimensions and Weight
Available Colors:Black

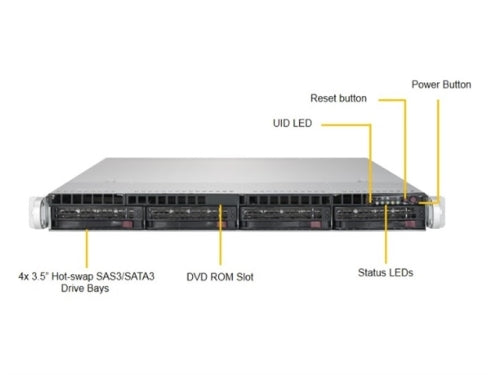

Front Panel
Buttons:Power On/Off button
UID button
LEDs:Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED

Expansion Slots
PCI-Express:2 PCI-E 3.0 x16 (FHHL) slots
1 PCI-E 3.0 x8 (LP) slot
1 PCI-E 3.0 x16 for Add-on-Module (AOM)
1 PCI-E M.2 SSD slot

Drive Bays
Hot-swap:4 Hot-swap 3.5" SATA3 drive bays

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans:4 Counter-rotating 4cm PWM fans

AC/DC240V Input Redundant Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power:700W/750W
Dimension(W x H x L):54.5 x 40.25 x 320 mm
Input::100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V:Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)(CB/CCC Only)
+5V sb:Max: 3A / Min: 0A
Output Type:Gold Finger Connector Mating with Molex 45984-4343
Certification:UL/cUL/CB/BSMI/CE/CCC
Platinum Certified

Operating Environment
RoHS:RoHS Compliant
Environmental Spec.:Operating Temperature: 10oC - 35oC (50oF - 95oF)
Non-operating Temperature: -40oC to 60oC (-40oF to 140oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Item Dimension (L inchxW inchxH inch)
29 x 24 x 10
Weight
46.00lb
