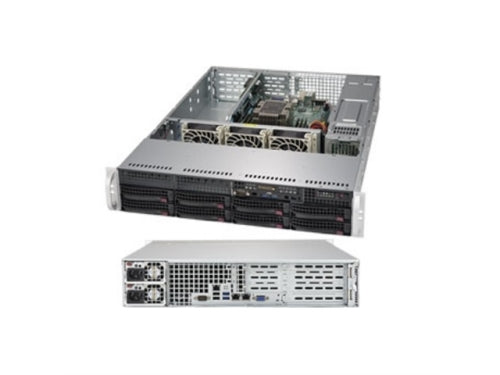

Supermicro System SYS-5029P-WTR 2U Xeon C622 Socket 3647 8x3.5
Out Of Stock
Supermicro System SYS-5029P-WTR 2U Xeon C622 Socket 3647 8x3.5

Supermicro System SYS-5029P-WTR 2U Xeon C622 Socket 3647 8x3.5" Hot-swap SATA3 PCIE Brown Box

Super X11SPW-TF

CPU:Single Socket P (LGA 3647)
Intel Xeon Scalable Processors
Support CPU TDP 70-205W
Cores:Up to 28 Cores with Intel HT Technology

System Memory
Memory Capacity:6 DIMM slots
Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset:Intel C622 chipset
SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers:Dual 10GBase-T LAN with Intel X772 + X557
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output
SATA:10 SATA3 (6Gbps) ports
LAN:2 RJ45 10GBase-T LAN ports
1 RJ45 dedicated IPMI LAN port
USB:2 USB 3.0 ports (rear)
2 USB 2.0 ports (rear)
Video:1 VGA port
Serial Port / Header:2 COM ports (1 rear, 1 header)
SuperDOM:2 SuperDOM (Disk on Module) ports with built-in power

System BIOS
BIOS Type:AMI 32Mb SPI Flash ROM

Software:Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
SuperDoctor 5
Watch Dog
Power Configurations:ACPI / APM Power Management

PC Health Monitoring
CPU:Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Form Factor:2U Rackmount

Dimensions and Weight
Available Colors:Black

Front Panel
Buttons:Power On/Off button
System Reset button
LEDs:Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Information LED (temp., status)

Expansion Slots
PCI-Express:4 PCI-E 3.0 x8 (FHFL) slots
1 PCI-E 3.0 x8 (LP) slot

Drive Bays
Hot-swap:8 Hot-swap 3.5" SATA3 drive bays
M.2:M.2 mini-PCI-e support

Peripheral Drives
DVD-ROM:1 Slim DVD-ROM drive bay

System Cooling
Fans:3 Hot-swap 8cm PWM cooling fans

Power Supply with Power Distributor
500W high-efficiency redundant power supplies with PMBus
AC Input:100-240 V, 50-60 Hz, 6.1-2.6 Amp
DC Output: 4 Amp at +5V standby
41.7 Amp at +12V
With Power Distributor:+5V: 30 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certification: Platinum Certified

Operating Environment
RoHS:RoHS Compliant
Environmental Spec.:Operating Temperature: 10oC - 35oC (50oF - 95oF)
Non-operating Temperature: -40oC to 60oC (-40oF to 140oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Item Dimension (L inchxW inchxH inch)
34 x 27 x 11
