MPN
SYS-5029AP-TN2
Motherboard
Super A2SAV
Processor/Cache
CPU:
Intel Atom Processor E3940
FCBGA 1296
System-on-Chip
System Memory
Memory Capacity: 1x 204-pin DDR3 SO-DIMM socket
Memory Type: 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs
DIMM Sizes: 8GB, 4GB, 2GB
Memory Voltage: 1.5 V, 1.35 V
On-Board Devices
SATA:
SoC controller for 2 SATA3 (6Gbps) ports
Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports RAID 0, 1, 5, 10
Network Controllers:
Dual GbE LAN with Intel i210-AT controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video: Intel HD Graphics
Input / Output
SATA: 6 SATA3 (6Gbps) ports
LAN: 2 RJ45 Gigabit Ethernet LAN ports
USB:
2 USB 3.0 (2 rear)
4 USB 2.0 (2 rear, 2 front)
1 USB 2.0 (Type A)
COM Port: 2 serial ports
DOM: 1 SATA DOM (Disk on Module) power connector
Video: 1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics
TPM: 1 TPM 1.2 onboard Header
Management
Software:
SuperDoctor 5
Watch Dog
Power Configurations:
ACPI Power Management
ATX Power connector
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection

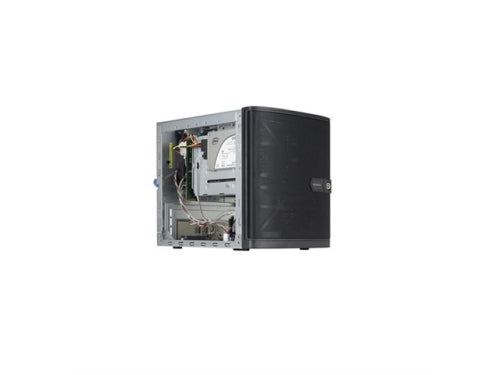

Chassis
Form Factor: Mini Tower
Model: CSE-721TQ-250B
Available Colors: Black
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Expansion Slots
PCI-E:
1 PCI-E 2.0 x2 (in x8) slot
1 M.2 PCIe 2.0 x2, M Key 2242/80
1 Mini-PCIe with mSATA
Drive Bays
HDD:
4 Hot-swap 3.5" drive bays
2 Internal 2.5" fixed drive bays
Peripheral: 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)
Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage: 100 - 240V, 50 - 60Hz, 5Amp
+5V: Max:14 Amp Min:0.5 Amp
+12V: Max:18 Amp Min:1 Amp at 100V-240V
-12V: Max: 3 Amp Min: 0 Amp
+3.3V: Max: 12 Amp Min: 0.3Amp
5VSB: Max: 2.5 Amp Min: 0 Amp
Certification: 80 PLUS Bronze Certified
System BIOS
BIOS Type: 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features:
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI
Operating Environment / Compliance
RoHS: RoHS Compliant
Environmental Spec.:
Operating Temperature: 10oC to 35oC (50oF to 95oF)
Non-operating Temperature: -40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
