Processor/Cache
CPU :
Intel Xeon processor D-1518, 2.2GHz CPU TDP support 35W
FCBGA 1667
Cores / Cache : 4 Cores, 8 Threads / 6MB
System Memory
Memory Capacity : 4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type : 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes : 32GB, 16GB, 8GB, 4GB
Memory Voltage : 1.2 V
Error Detection :
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA : SoC controller for SATA3 (6Gbps) ports
Network Controllers :
Dual 10G SFP+ from D-1500 SoC
Quad 1GbE with Intel I350-AM4
Dual 1GbE with Intel I210
IPMI :
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Dedicated RJ45 IPMI LAN port
Graphics : BMC integrated ASPEED AST2400
Input / Output
SATA : 4x SATA3 (6Gbps) ports
LAN : 2x 10G SFP+ ports, 6x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port
USB : 2x USB 3.0 ports (rear)
DOM : 1x SATA DOM (Disk on Module) power connector
VGA : 1x VGA Port
Others : TPM 1.2 header

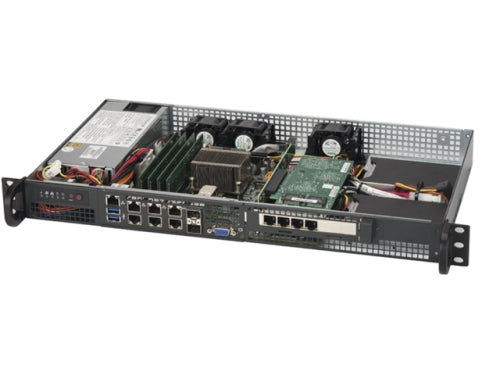

Chassis
Form Factor : 1U Rackmount
Model : CSE-505-203B
Front Panel
Buttons :
Power On/Off button
System Reset button
LEDs :
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Information LED (temp., status)
Expansion Slots
PCI-E :
1x PCIe 3.0 x8 slots
M.2 PCIe 3.0 x4, M Key 2242/2280/22110
Mini-PCIe with mSATA support
Drive Bays
HDD : 1x 3.5 inch or 4x 2.5 inch fixed drive bays with bracket
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage : 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V : 8.0 Amp (max.)
+5V : standby 2.0 Amp (max.)
+12V : 16 Amp (max.)
-12V : 0.5 Amp (max.)
+3.3V : 8.0 Amp (max.)
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature : 10oC to 40oC (50oF to 104oF)
Non-operating Temperature : -40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity : 8 percent to 90 percent (non-condensing)
Non-operating Relative Humidity : 5 percent to 95 percent (non-condensing)
