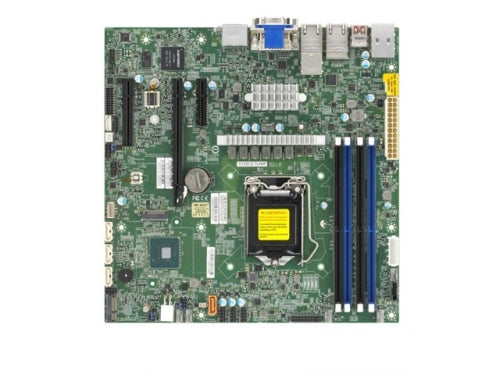

Supermicro Motherboard MBD-X12SCZ-TLN4F-B LGA 1200 W480E 128GB DDR4 PCIE Display Port /D-Sub microATX Bulk Pack
New
Supermicro Motherboard MBD-X12SCZ-TLN4F-B LGA 1200 W480E 128GB DDR4 PCIE Display Port /D-Sub microATX Bulk Pack

Supermicro Motherboard MBD-X12SCZ-TLN4F-B LGA 1200 W480E 128GB DDR4 PCIE Display Port /D-Sub microATX Bulk Pack

$430.99
SHARE
Form Factor
microATX
Processor/Cache
CPU
10th Generation Intel CoreTM i9/CoreTM i7/CoreTM i5/CoreTM i3 Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Cores / Cache
Up to 10 cores
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel W480E
SATA
Intel W480E controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Audio
ALC 888S HD Audio
Graphics
ASPEED AST2500 BMC, Intel HD Graphics
Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 10 Gigabit Ethernet LAN ports
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 ports (6 via headers)
6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers)
Video Output
1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Serial Port / Header
1 COM Port (1 header)
TPM
TPM Header and Chip both
Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x4
M.2
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software
AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
+12V DC Power Input
ATX Power connector
ACPI Power Management
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status, Chassis intrusion header, CPU, Memory temperature, PCH temperature, VBAT
Temperature
Thermal Control for 5 Fan Connectors
LED
Power LED, BMC/IPMI Heartbeat LED, UID/Remote UID
Other Features
12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID
Operating Environment
Operating Temperature Range
0oC to 60oC (32oF to 140oF)
Non-Operating Temperature Range
-40oC - 85oC (-40oF - 185oF)
Operating Relative Humidity Range
10% to 85% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
