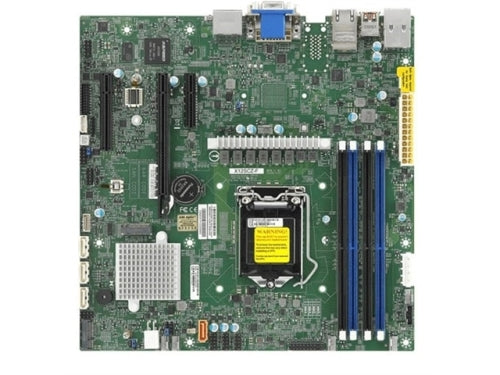

Supermicro Motherboard MBD-X12SCZ-QF-O Q470 S1200 H5 Max128GB DDR4 microATX Bulk Pack
New
Supermicro Motherboard MBD-X12SCZ-QF-O Q470 S1200 H5 Max128GB DDR4 microATX Bulk Pack

Supermicro Motherboard MBD-X12SCZ-QF-O Q470 S1200 H5 Max128GB DDR4 microATX Bulk Pack

$446.49
SHARE
Physical Stats
Form Factor
microATX
Processor
CPU
10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Core
Up to 10 cores
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel Q470
SATA
Intel Q470E controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500 BMC
Audio
ALC 888S HD Audio
Graphics
Intel HD Graphics
ASPEED AST2500 BMC
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet Controller I210-AT
Input / Output
SATA
4 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 3.1 Gen2 port(s) (2 via header 4 rear type A)
6 USB 3.2 Gen2 port(s) (4 rear type A 2 via header)
6 USB 2.0 port(s) (6 via header)
Video Output
1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
1 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header and Chip both
Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 1 CNVi/PCI-E 3.0 x1
Form Factor: 2280/22110, 2230
Key: M-Key, E-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor 5, SUM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED
Temperature
Thermal Control for 5 Fan Connectors
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Dual Cooling Zone
5 fans with tachometer status monitoring
Other Features
UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range
0oC - 60oC (32oF - 140oF)
Non-Operating Temperature Range
-40oC - 85oC (-40oF - 185oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
