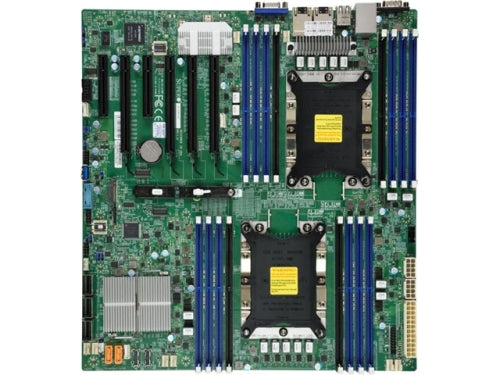

Supermicro MotherBoard MBD-X11DPI-NT-O Xeon Dual Socket S3647 C622 Max.2T PCI Express EATX Retail
Supermicro MotherBoard MBD-X11DPI-NT-O Xeon Dual Socket S3647 C622 Max.2T PCI Express EATX Retail

Supermicro MotherBoard MBD-X11DPI-NT-O Xeon Dual Socket S3647 C622 Max.2T PCI Express EATX Retail

$776.99
SHARE
MPN
MBD-X11DPI-NT-O
Form Factor
E-ATX
CPU
Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Cores / Cache
Up to 28 cores
Memory Capacity
Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chipset
Intel C622
SATA
Intel C622 controller for 14 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 10GBase-T with Intel X557
Graphics
Aspeed AST2500 BMC
USB
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output
1 VGA port(s)
Serial Port / Header
2 COM Ports (1 rear, 1 header(s))
TPM
1 TPM Header
PCI-E
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2
Interface: PCIe 3.0 x4
Form Factor: 2260, 2280, 22110
BIOS Type
AMI UEFI
Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby
FAN
8x 4-pin fan headers (up to 8 fans), Pulse Width Modulated (PWM) fan connectors, PWM fan speed control
Temperature
N/A
LED
N/A
Other Features
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Item Dimension (L inchxW inchxH inch)
14 x 11 x 3
Weight
3.00lb
