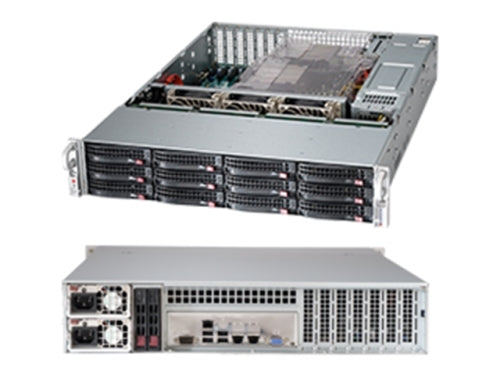

Supermicro Case CSE-826BE1C-R920LPB 2U 12x3.5inch Hot-Swap SAS/SATA 80PLUS 920W RPS EATX Black Retail
Out Of Stock
Supermicro Case CSE-826BE1C-R920LPB 2U 12x3.5inch Hot-Swap SAS/SATA 80PLUS 920W RPS EATX Black Retail

Supermicro Case CSE-826BE1C-R920LPB 2U 12x3.5inch Hot-Swap SAS/SATA 80PLUS 920W RPS EATX Black Retail

$1,578.00
SHARE
Form Factor
2U chassis support for max. motherboard size - 13.68" x 13" and E-ATX
(Support up to E-ATX 12"x13" MB with rear 2.5" HDD option installed)

Processor Support
Supports dual, single Intel / AMD processors
Available Colors
Black

Expansion Slots
7x low-profile full-length expansion slots

Drive Bays
Hot-swap
12x 3.5" Hot-swap SAS3/SATA drive trays and Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring
SAS or enterprise SATA HDD only recommended
Backplane
SAS3 Single Expander Backplane features:
Up to 12Gbps support
In-band SES-2 Enclosure Management Support
SAS3/SATA3 support
4x Mini-SAS HD connectors
Scalability through cascading
Front Panel
Buttons
Power On/Off button
System Reset button
System Cooling
Fans
3x 80mm 7K RPM Chassis middle fan w/ housing
Power Supply with Power Distributor
920W high-efficiency (94+%) power supply with PMBus
AC Input
100-240 V, 50-60 Hz, 11-4.4 Amp
DC Output
4 Amp at +5V standby
75 Amp at +12V
With Power Distributor
+5V: 45 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certification
Platinum Level Certified94%+ Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification
