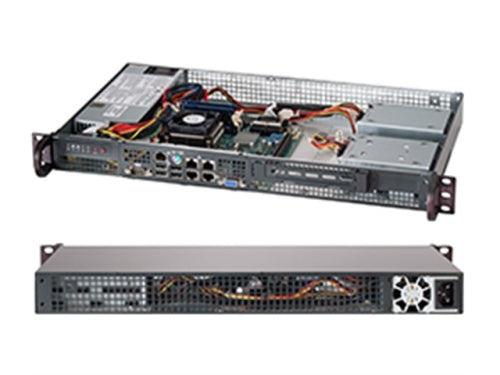

Supermicro Case CSE-505-203B Mini-ITX 1U 9.8inch Depth 200W 80PLUS 1x3.5inch Black Retail
New
Supermicro Case CSE-505-203B Mini-ITX 1U 9.8inch Depth 200W 80PLUS 1x3.5inch Black Retail

Supermicro Case CSE-505-203B Mini-ITX 1U 9.8inch Depth 200W 80PLUS 1x3.5inch Black Retail

$202.49
SHARE
MPN
CSE-505-203B
Form Factor
9.8"-Depth Mini 1U chassis support for maximum motherboard size - 6.75" x 6.75"

Processor Support
Single Processor Support

Available Colors
Black
Expansion Slots
Up to 1x full-height, half-length PCI expansions slot

Drive Bays
Internal
Bay 1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI OR 2x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI OR 4x 2.5" Internal Drive Bay Ony SAS or enterprise SATA HDD recommended
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
I/O Ports
1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse

Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
8.0 Amp (max.)
+5V standby
2.0 Amp (max.)
+12V
16 Amp (max.)
-12V
0.5 Amp (max.)
+3.3V
8.0 Amp (max.)
Certification
Gold Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
CCC Certification
EN 60950/IEC 60950-Compliant
Europe/CE Mark
Germany - TUV Certified
