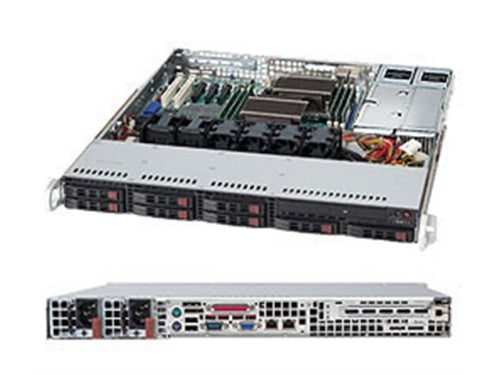

Supermicro Case CSE-113TQ-R500CB 1U 8x2.5inch SAS/SATA Bay 3fan 500W Black Retail
Out Of Stock
Supermicro Case CSE-113TQ-R500CB 1U 8x2.5inch SAS/SATA Bay 3fan 500W Black Retail

Supermicro Case CSE-113TQ-R500CB 1U 8x2.5inch SAS/SATA Bay 3fan 500W Black Retail

$876.99
SHARE
Form Factor
23.5" Depth 1U Rackmount Chassis - support for motherboard sizes of 12" x 13" and 13.68" x 13" (single power only)

Processor Support
Supports dual, single Intel / AMD processors
Available Color
Black

Expansion Slot (Riser Card Required)
1x Full-height and Full-length PCI expansion slot

Drive Bays
Hot-swap
8x Hot-swap 2.5" SAS / SATA HDD tray
SAS or enterprise SATA HDD only recommended
SAS / SATA Backplane
1x 1U SAS / SATA backplane with SES2

Peripheral Drives
DVD-ROM
Slim DVD-ROM drive
Front Panel
Buttons
Power On/Off button
System Reset button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED
System Cooling
Fans
3x 40x56mm Counter-rotating PWM fans (Opt. 2x fans for AOC cooling)
Power Supply with Power Distributor
500W high-efficiency (94%+) redundant power supplies w/ PMBus
AC Input
100-240 V, 50-60 Hz, 6.2-2.6 Amp
DC Output
3 Amp at +5V standby
42 Amp at +12V
With Power Distributor
+5V: 25 Amp
+3.3V: 12 Amp
-12V: 0.6 Amp
Certification
80PLUS Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
CCC Certification
EN 60950/IEC 60950-Compliant
Europe/CE Mark
Germany - TUV Certified
Taiwan- BSMI mark
