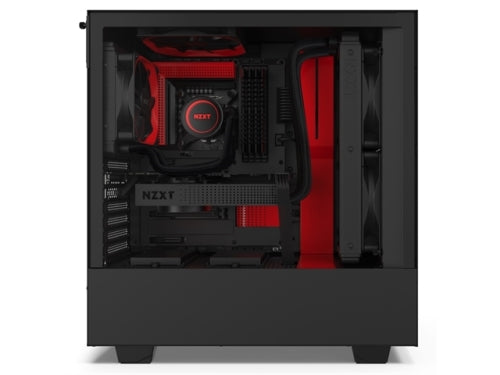

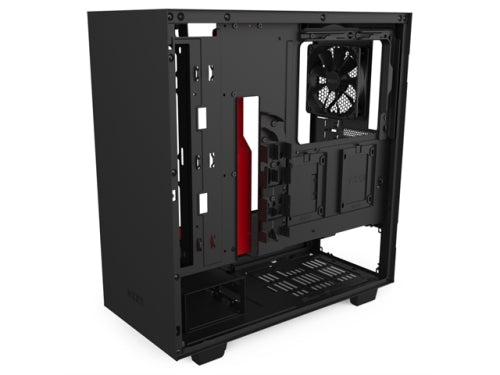

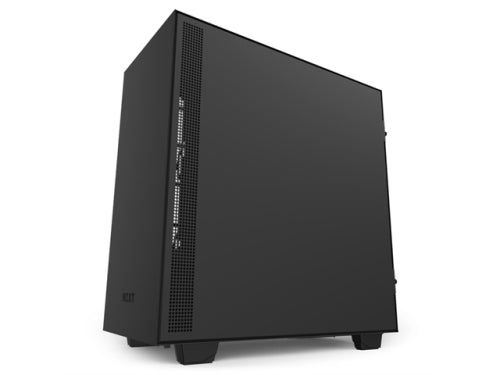

NZXT Case CA-H510B-BR H510 Mid-Tower Tempered Glass USB 3.5"/2.5" Mini-ITX/MicroATX/ATX Matte Black/Red Retail

$137.49
SHARE
MPN
CA-H510B-BR
Material(s)
SGCC Steel and Tempered Glass

Motherboard Support
Mini-ITX, MicroATX, and ATX

Front I/O Ports
H510:
1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
H511:
2x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x HD Audio Header

Filters
All Air Intakes

Included Accessories
Installation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)

Drive Bays
2.5": 2+1
3.5": 2+1

Expansion Slots
7

Radiator Support
Front: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm

Fan Support
Front: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)

Fan Specs
Aer F120 (Case Version)
Speed: 1200 +/- 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing

Clearance
Cable Management: 19-23mm
GPU Clearance: Up to 381mm w/o front watercooler installed, up to 325mm with front watercooler installed
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir and Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
