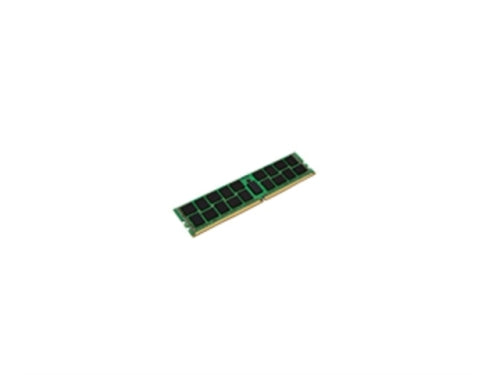

Kingston Memory KSM32RS8/8HDR 8GB 3200MHz DDR4 ECC Registered CL22 DIMM 1Rx8 Hynix D Retail
NewOut Of Stock
Kingston Memory KSM32RS8/8HDR 8GB 3200MHz DDR4 ECC Registered CL22 DIMM 1Rx8 Hynix D Retail

Kingston Memory KSM32RS8/8HDR 8GB 3200MHz DDR4 ECC Registered CL22 DIMM 1Rx8 Hynix D Retail

$38.99
SHARE
MPN
KSM32RS8/8HDR
CL(IDD)
22 cycles
Row Cycle Time (tRCmin)
45.75ns(min.)
Refresh to Active/Refresh

Command Time (tRFCmin)
350ns(min.)
Row Active Time (tRASmin)
32ns(min.)
Maximum Operating Power
IDD Specifications
IDD
Symbol 3200 Units
IDD0 787 mA
IDD0A 787 mA
IDD1 893 mA
IDD1A 919 mA
IDD2N 714 mA
IDD2NA 714 mA
IDD2NT 759 mA
IDD2NL 651 mA
IDD2NG 714 mA
IDD2ND 705 mA
IDD2NP 714 mA
IDD2P 478 mA
IDD2Q 669 mA
IDD3N 744 mA
IDD3NA 744 mA
IDD3P 512 mA
IDD4R 1558 mA
IDD4RA 1586 mA
IDD4RB 1575 mA
IDD4W 1544 mA
IDD4WA 1592 mA
IDD4WB 1487 mA
IDD4WC 1537 mA
IDD4WP 1752 mA
IDD5B 2235 mA
IDD5F2 1751 mA
IDD5F4 1600 mA
IDD6N 175 mA
IDD6E 239 mA
IDD6R 115 mA
IDD6A 239 mA
IDD7 1702 mA
IDD8 92 mA
IPP
Symbol 3200 Units
IPP0 36 mA
IPP1 40 mA
IPP2N 21 mA
IPP2P 17 mA
IPP3N 100 mA
IPP3P 98 mA
IPP4R 129 mA
IPP4W 128 mA
IPP5B 489 mA
IPP5F2 324 mA
IPP5F4 265 mA
IPP6N 37 mA
IPP6E 52 mA
IPP6R 25 mA
IPP6A 51 mA
IPP7 142 mA
IPP8 18 mA
UL Rating
94 V - 0
Operating Temperature
0oC to +85oC
Storage Temperature
-55oC to +100oC
Module Assembly
DRAM:
HYNIX (D-DIE)
RCD:
Rambus
