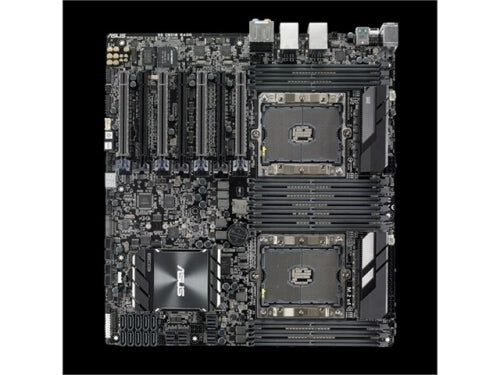

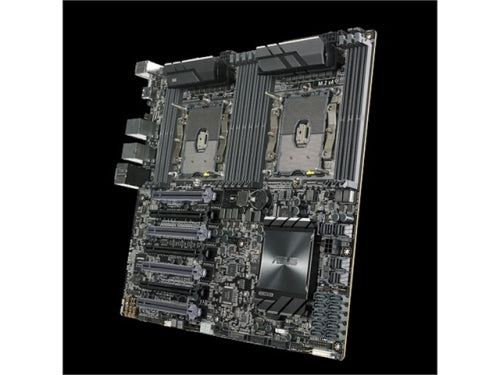

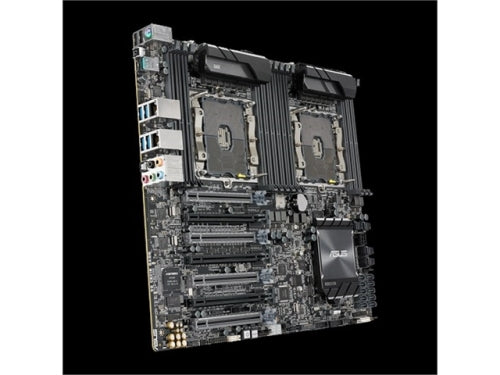

ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
New
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box
ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box

ASUS Motherboard WS C621E SAGE(BMC) DP XEON C621 EEB BMC 7PCIE Brown Box

$679.99
SHARE
MPN
WS C621E SAGE(BMC)
CPU
Refer to www.asus.com for CPU support list
Dual Intel Socket P (LGA 3647) for Intel Xeon Scalable Processors Family (205W)
Chipset
Build in Intel C621
Memory
12 x DIMM, Max. 768GB, DDR4 2666/2400 MHz RDIMM, LR-DIMM Memory
Please refer to ASUS AVL for the latest update.
Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Graphic
Integrated Graphics Processor
VGA port(Optional)
- Supports VGA with max. resolution 1920 x 1200 at 60 Hz
Aspeed AST2500 with 64 MB VRAM
Multi-GPU Support
Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
Expansion Slots
3 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
2 x PCIe 3.0 x16 (x8 mode)
Storage
Intel C621 Chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
ASMedia SATA 6Gb/s controller :
2 x SATA 6Gb/s port(s),
4 x U.2 connector,
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA and PCIE mode)
LAN
Intel I210-AT, 2 x Gigabit LAN Controller(s)
Audio
Realtek S1220A 7.1-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports
ASMedia USB 3.1 Gen 2 controller :
2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel C621 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel C621 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
Workstation Feature
ProCool Power Connector
USB BIOS Flashback
ASUS PIKE SAS upgrade kit
Special Features
Gamers Guardian:
- DIGI+ VRM
- SafeSlot
ASUS Digital Power Design :
- Industry leading Digital 7 + 1 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
ASUS Exclusive Features :
- Front Panel USB 3.0 Support
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

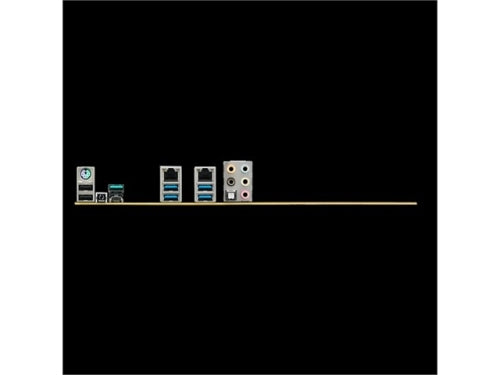

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O
Internal I/O Ports
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x TPM header
1 x COM port(s) connector(s)
10 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
2 x CPU Fan connector(s) (2 x 4 -pin)
7 x Chassis Fan connector(s)
2 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x VGA connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x AUX panel header(s)
1 x SMBus header(s)
1 x 6-pin EATX 12V_3 Power connector
1 x System panel connector
4 x U.2 Connector (support U.2 NVMe device)
Form Factor
EEB Form Factor
12 inch x 13 inch ( 305 cm x 330 cm )
