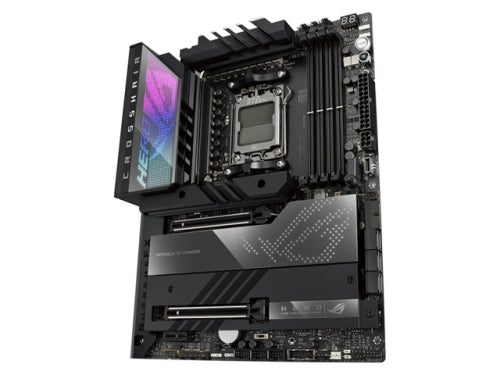

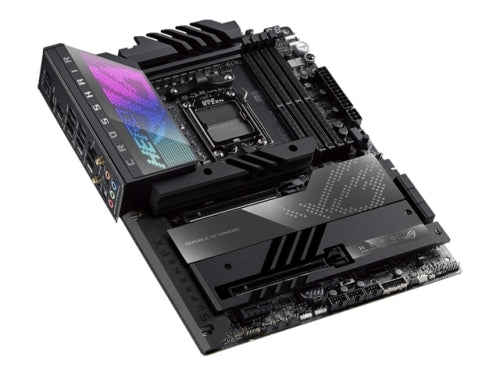

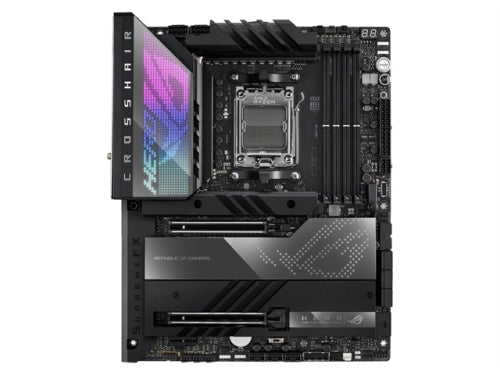

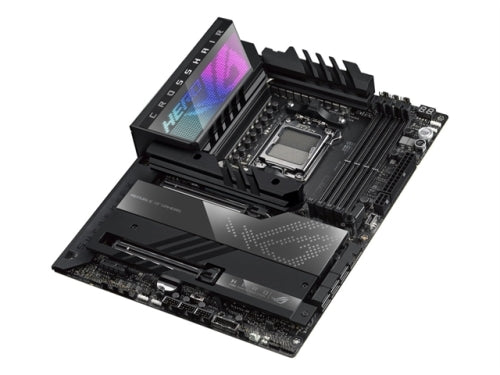

ASUS Motherboard ROG CROSSHAIR X670E HERO X670 AM5 Max.128GB DDR5 ATX Retail

MPN
ROG CROSSHAIR X670E HERO
CPU
AMD Socket AM5 for AMD Ryzen^TM 7000 Series Desktop Processors^Note
Note: Refer to www.asus.com for CPU support list.
Chipset
AMD X670
Memory
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory^Note
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO^TM)
OptiMem II
Note: Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Note: Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x HDMI port^Note1
2 xUSB4 ports support USB Type-C display outputs^Note2
Note1: Supports 4K at 60Hz as specified in HDMI 2.1.
Note2: VGA resolution support depends on processors or graphic cards resolution.
Expansion Slots
AMD Ryzen^TM 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s) ^Note
AMD X670 Chipset
1 x PCIe 4.0 x1 slots
Note: When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
Storage
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports^Note1
AMD Ryzen^TM 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) ^Note2
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports
Note1: AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Note2: Performance may vary depending on the SSDs firmware version and the system hardware and system configuration, for more information refer to www.asus.com for device support list.
Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band^Note1
Bluetooth v5.3^Note2
Note1: WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Note2: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
USB
Rear USB (Total 12 ports)
2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C)
Front USB (Total 11 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)^Note
2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Note: To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
Audio
ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- SupremeFX Shielding Technology
- ESS ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Back Panel I/O Ports
2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Gold-plated audio jacks^Note
1 x Optical S/PDIF out port
1 x BIOS FlashBack^TM button
1 x Clear CMOS button
Note: The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pinPCIe Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^TM button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging^Note
- Output: 5/9/15/20V max. 3A, PPS:3.3-21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
Note: To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
- Polymo Lighting
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ Power Control
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x ARGB RGB extension cable
1 x RGB extension cable
4 x SATA 6Gb/s cables
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for PCIe 5.0 M.2 Card
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
3 x Rubber Packages for M.2 backplate
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
