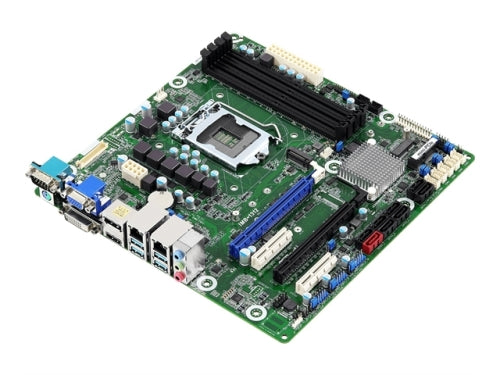

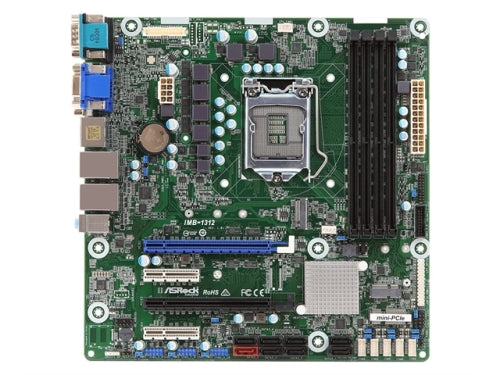

Form Factor
Dimensions
- Micro ATX (9.6-in x 9.6-in)
Processor System
CPU
- Socket LGA 1151 for Intel Core i7/i5/i3/Celeron (Supports up to 95W)
Chipset
- Intel Q370
Expansion Slot
PCIe
- 1x PCIe x16, 1x PCIe x8, 2x PCIe x4
Slot1: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
Mini-PCIe
- 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2
- 1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
Memory
Technology
- Dual Channel DDR4 2400/2666MHz
Max.
- 64GB
Socket
- 4 x Long-DIMM
Graphics
Controller
- Intel HD Graphics (By CPU)
VGA
- Supports max resolution up to 1920x1200
DVI
- Max resolution up to 4096x2304 at60Hz
LVDS
- Supports max resolution up to 1920x1200 at60Hz
HDMI
- Max resolution up to 4096x2160 at24Hz
DisplayPort
- Max resolution up to 4096x2304 at60Hz
MultiDisplay
- Triple Display
eDP
- N/A
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- 1 x Intel I210, 1 x Intel I219LM

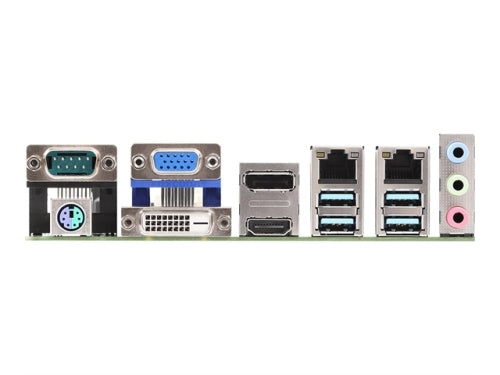

Rear I/O
VGA
- 1
DVI
- 1 x DVI-D
HDMI
- 1 x HDMI 1.4
DisplayPort
- 1 x DP1.2++
Ethernet
- 2
USB
- 4 x USB3.1
Audio
- 3 (Mic-in. Line-in. Line-out)
Serial
- 1 x COM (RS-232/422/485)
PS2
- 1x PS/2 combo
Internal Connector
USB
- 6 x USB2.0, 2 x USB3.1
LVDS / inverter
- 1
eDP
- N/A
VGA
- N/A
Serial
- 5 x COM(RS-232)
SATA
- 8x SATA3 (6.0Gb/s), one is shared with M.2 Key M
Parallel
- 1 (shared with GPIO)
GPIO
- 8 x GPI, 8 x GPO
SATA PWR Output
- N/A
Speaker Header
- 1
TPM
- 1 x Onboard IC
Watchdog Timer
Output
- From Super I/O to drag RESETCON
Interval
- 256 segments, 0,1,2255sec
Power Requirements
Input PWR
- 24+4-pin ATX PWR Con.
Power On
-AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power input ready
Environment
Operating Temp
- 0oC to 60oC
Storage Temp
- 20oC to 80oC
Operating Humidity
- 5% to 90%
Storage Humidity
- 5% to 90%
