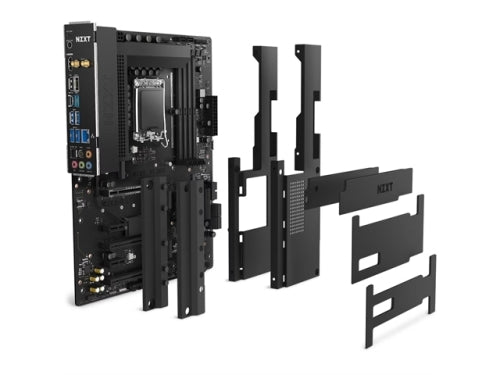

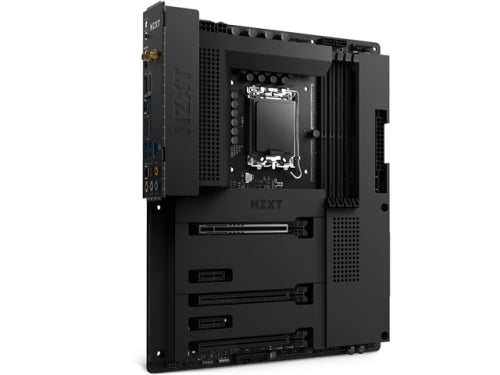

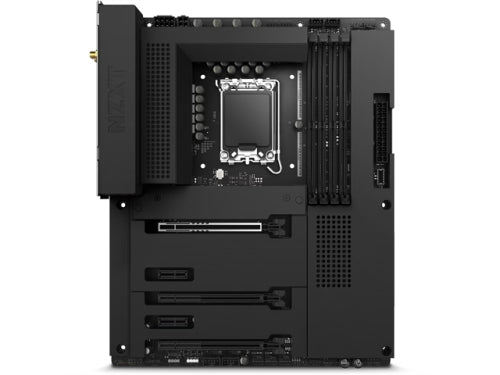

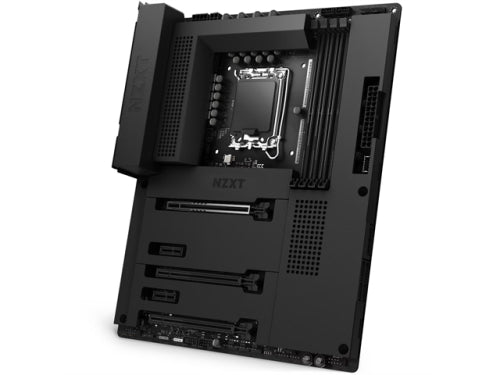

NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail
NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail

NZXT Motherboard N7-Z69XT-B1 Z690 LGA1700 128GB DDR4 PCIE HDMI/USB ATX Black Retail

$306.99
SHARE
CPU
Intel Socket LGA1700 for 12th Generation Processors:
Intel CoreTM Processors. Please refer to CPU support list.
Intel Hybrid Technology:
Supported
Turbo Boost Max 3.0 Technology:
Supported
CHIPSET
Intel:
Z690
MEMORY
DIMM Slots:
4
Max Memory Support:
128GB
Memory Architecture:
Dual-Channel
OC Frequency:
5000+(O.C.). Please refer to memory QVL.
Base Frequency:
3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Type:
Non-ECC, Un-buffered Memory
Intel XMP 2.0 Support:
Supported
INTEGRATED GRAPHICS
Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs):
HDMI 2.0 / HDMI 1.4b
HDMI Max Resolution:
4096x2160 at 60Hz
MULTI-GPU SUPPORT
AMD 2-Way CrossFireXTM Technology:
Supported
EXPANSION SLOTS
PCIe x16:3 (Single - PCIe_1:
Gen 5 x16 mode / Dual - PCIe_1: Gen 5 x16, PCIe_3: Gen 4 x4 / Triple - PCIe_1: Gen 5 x16, PCIe_3: Gen 4 x4, PCIe_5: Gen 3 x4)
PCIe 3.0 x1:2
M.2 Socket (Key E):
Supports Type 2230 Wi-Fi/BT Module, Intel CNVio
STORAGE (CHIPSET)
M.2_1 Type 2242/2260/2280 (PCIe 4.0 x4 mode):
1
M.2_2 Type 2242/2260/2280/22110 (PCIe 4.0 x4 mode):
1
M.2_3 Type 2242/2260/2280 (PCIe 4.0 x4 and SATA mode):
1
SATA 6Gb/s:
4
RAID 0/1/5/10 Support:
Supported
Intel Volume Management Device (VMD):
Supported
Intel Optane Technology:
Supported
NVMe SSD as boot disks:
Supported
LAN
Realtek:
RTL8125BG 2.5G
WIRELESS
Intel Dual-Band Wireless:
AX210 Wi-Fi 6E
Protocol:
802.11 a/b/g/n/ac/ax
Frequency Bands:
2.4 / 5 / 6 GHz
MU-MIMO Support:
Supported
Bluetooth:
V5.2
AUDIO
Realtek:
ALC1220 Codec
Channels:
8-Channel High Definition Audio
Playback:
32-bit / 192kHz DAC
Capacitors:
Nichicon Fine Gold Series
REAR I/O
USB 3.2 Gen 2 (Type-C):
1
USB 3.2 Gen 2 (Type-A):
2
USB 3.2 Gen 1 (Type-A):
3
USB 2.0:
2
HDMITM 2.0:
1
Wireless Antenna:
2 (2T2R)
LAN (RJ45) Port:
1
5.1-Channel Audio Jacks:
1
Optical S/PDIF:
1
BIOS Flashback Button:
1
Clear CMOS Button:
1
INTERNAL I/O
USB 3.2 Gen 2 Header (Type-C):
1
USB 3.2 Gen 1 Header:
1 (Up to 2 ports)
USB 2.0 Header:
2 (Up to 4 ports)
Front Panel Audio:
1
CPU_FAN Connector:
1 (Up to 24W)
AIO_PUMP Connector:
1 (Up to 24W)
SYS_FAN Connector:
5 (Up to 24W)
NZXT RGB LED Header:
2
5V ARGB Header:
1
12V RGB Header:
1
24-pin EATX Power:
1
8-pin ATX 12V Power:
1
4-pin ATX 12V Power:
1
Power Button:
1
Reset Button:
1
POST LEDs:
4
GENERAL
Operating System:
Windows 11/10 64-bit
Form Factor:
ATX
