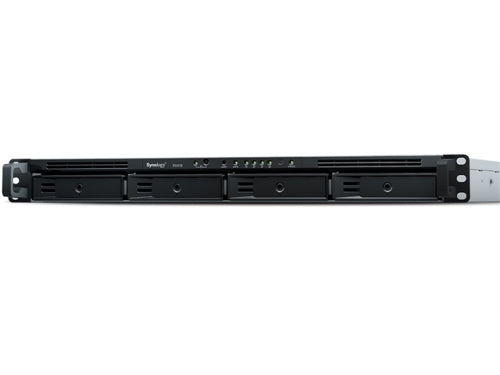

MPN
RX418
Storage
Drive Bays: 4
Compatible Drive Type: 3.5" SATA HDD / 2.5" SATA HDD / 2.5" SATA SSD
Maximum Internal Raw Capacity: 48 TB (12 TB drive x 4) (Capacity may vary by RAID types)
Hot Swappable Drive: Yes
RAID Management through Synology DSM: Yes
External Ports
eSATA port: 1
Power
Power Recovery: Synchronized with the Synology RackStation
Power Supply Unit / Adapter: 100W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption:
- 23.26 W (Access)
- 6.39 W (HDD Hibernation)
British Thermal Unit:
- 79.42 BTU/hr (Access)
- 21.82 BTU/hr (HDD Hibernation)
Note: Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature: 5oC to 35oC (40oF to 95oF)
Storage Temperature: -20oC to 60oC (-5oF to 140oF)
Relative Humidity: 5% to 95% RH
Others
System Fan: 40 mm x 40 mm x 3 pcs
Noise Level: 25.1 dB(A)
Note: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle, Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75oC, Humidity: 58.2-61.8%
Certification
FCC
CE
BSMI
EAC
VCCI
RCM
KC
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Users Guide X 1
Accessory Pack X 1
AC Power Cord X 1
Expansion Cable: eSATA X 1
Optional Accessories
Synology RKS1317 - Rail Kit Sliding
Synology RKM114 - Rail Kit Mounted
Item Dimension ( L inch x W inch x H inch)
21 x 16 x 6
Weight
15 lb
