Synology NAS RS822RP+ 4-bay RackStation (Diskless) Retail

CPU
CPU Model
AMD Ryzen V1500B
CPU Quantity
1
CPU Architecture
64-bit
CPU Frequency
4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
Yes
Memory
System Memory
2 GB DDR4 ECC SODIMM
Memory Module Pre-installed
2 GB (2 GB x 1)
Total Memory Slots
2
Maximum Memory Capacity
32 GB (16 GB x 2)
Storage
Drive Bays
4
Maximum Drive Bays with Expansion Unit
8 (RX418 x 1)
Compatible Drive Type (See all supported drives: https://www.synology.com/en-id/compatibility)
3.5" SATA HDD
2.5" SATA SSD
Hot Swappable Drive
Yes
Notes
- "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more: https://www.synology.com/en-id/knowledgebase/DSM/tutorial/Storage/Why_does_my_Synology_NAS_have_a_single_volume_size_limitation)

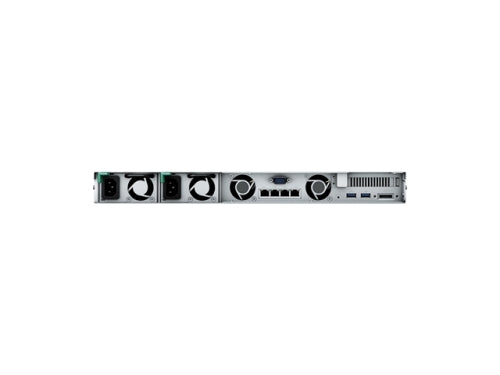

External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port
2
eSATA Port
1
Notes
- This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion
1 x Gen3 x8 slot (x4 link)
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Appearance
Form Factor (RU)
1U
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
Notes
The rail kit is sold separately
Others
System Fan
RS822RP+ :
40 mm x 40 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Power Recovery
Yes
Noise Level
RS822RP+ :
38.8 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
150 W
Redundant Power Supply
RS822RP+ : Yes
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
47.69 W (Access)
16.7 W (HDD Hibernation)
British Thermal Unit
162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
- For more information on how power consumption is measured, refer to this article (https://kb.synology.com/DSM/tutorial/How_is_power_consumption_tested_on_Synology_devices).
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75^oC, Humidity: 58.2-61.8%
Temperature
Operating Temperature
0^oC to 35^oC (32^oF to 95^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC
UL
Environment
RoHS Compliant
Packaging Content
RS822RP+ :
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Optional Accessories
DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
Expansion Units: RX418
3.5" SATA HDD: HAT5300
2.5" SATA SSD: SAT5210
M.2 SSD and 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
25GbE Network Interface Card: E25G21-F2
10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
Rail Kit Sliding: RKS-02
Rail Kit Mounted: RKM114
VisualStation: VS360HD
Surveillance Device License Pack
Notes
- Certain items may not be available in your location. Please contact your local distributors for more information.
- All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
