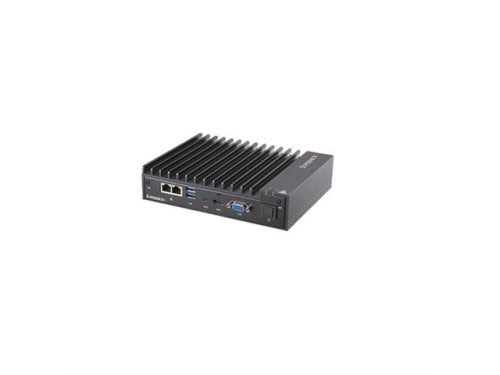

Supermicro System SYS-E100-9AP Atom E3940 LGA1296 DDR3L 40W 3.5
Supermicro System SYS-E100-9AP Atom E3940 LGA1296 DDR3L 40W 3.5

Supermicro System SYS-E100-9AP Atom E3940 LGA1296 DDR3L 40W 3.5" SBC Brown Box

$486.49
SHARE
MPN
SYS-E100-9AP
Motherboard
Super A2SAN-E

Processor/Cache
CPU
Intel Atom Processor E3940
FCBGA 1296
System-on-Chip
CPU TDP support 9W

System Memory
Memory Capacity
1x 204-pin DDR3L SO-DIMM socket
Memory Type
1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs
DIMM Sizes
8GB, 4GB, 2GB
Memory Voltage
1.35 V

On-Board Devices
Network Controllers
Dual GbE LAN with Intel i210-IT controller

Input / Output
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.0 (front)
4 USB 2.0 (rear)
COM Port
4 COM ports (4 headers), 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Video
1 VGA, 1 HDMI
Others
1 DIO via DB9

Chassis
Form Factor
3.5" SBC
Model
CSE-E101
Available Colors
Black

Front Panel
Buttons
Power On/Off button
LEDs
Power LED and Hard drive activity LED

Expansion Slots
PCI-Express
1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)

Drive Bays
Internal
1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)

System Cooling
Fans
Fan-less design

Power Supply
Lockable 12V DC 40W power adapter

System BIOS
BIOS Type
64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI

Management
Software
SuperDoctor 5
Watch Dog
Power Configurations
ACPI Power Management
ATX Power connector
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection

Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
-20oC to 60oC (-4oF to 140oF)
Non-operating Temperature:
-40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5-500 Hz, 1hr/axis
Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
