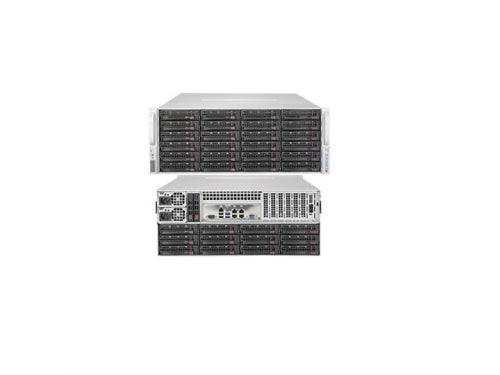

Supermicro System SSG-6049P-E1CR36L 4U Xeon LGA3647 Intel C624 2TB DDR4 PCI Express Brown Box
Supermicro System SSG-6049P-E1CR36L 4U Xeon LGA3647 Intel C624 2TB DDR4 PCI Express Brown Box

Supermicro System SSG-6049P-E1CR36L 4U Xeon LGA3647 Intel C624 2TB DDR4 PCI Express Brown Box

Super X11DPH-T
Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores : Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity :
16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type : 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset : Intel C624 chipset
SAS3 (12Gbps) via Broadcom 3008 AOC
Broadcom 3008 controller
SATA : SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers : Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics : ASPEED AST2500 BMC
Input / Output
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
4 USB 3.0 ports (rear)
1 Type A
VGA : 1 VGA port
Serial Port / Header : 1 Fast UART 16550 port / 1 Header
System BIOS
BIOS Type : 256Mb AMI UEFI
Software :
Intel Node Manager
IPMI 2.0
SuperDoctor 5
PC Health Monitoring
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature :
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Form Factor : 4U Rackmount
Model : CSE-847BE1C4-R1K23LPB
Available Colors
Front Panel
Buttons :
Power On/Off button
System Reset button
LEDs :
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Expansion Slots
PCI-Express :
3 PCI-E 3.0 x16 slot
4 PCI-E 3.0 x8 slots
Slot 2 and 3 occupied by controller and JBOD Expansion Port
Drive Bays
Hot-swap : 36 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional : 2 Optional Onboard NVMe M.2
SAS3/SATA3 single expander per backplane
System Cooling
Fans :
3 Hot-swap 8cm redundant PWM cooling fans
2 Hot-swap 8cm rear exhaust PWM fans
Redundant cooling
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power : 1000W/1200W
Dimension(W x H x L) : 76 x 40 x 336 mm
Input :
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
200-240Vdc / 8.5-7A (for CCC only)
+12V :
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
Max: 100A / Min: 0A (200-240Vdc)
+5Vsb :
Max: 4A / Min: 0A
Output Type : 19 Pairs Gold Finger Connector
Certification :
Titanium Level
Operating Environment
RoHS : RoHS Compliant
Environmental Spec. : Operating Temperature: 10oC to 35oC (50oF to 95oF)
Non-operating Temperature: -40oC to 60oC (-40oF to 140oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
