Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
New
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box
Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box

Supermicro Server SYS-531A-IL Mid-Tower Corei LGA1700 W680 DDR5 128GB 668Watts PCIE Brown Box

$940.49
SHARE
MPN
SYS-531A-IL
Motherboard
Super X13SAE
Processor
CPU
Single Socket V (LGA-1700)
12th Generation Intel Core Processors
Support CPU TDP 125W
System Memory
Memory
Memory Capacity: 4 DIMM slots
Up to 128GB: 4x 32 GB DRAM
Memory Type: 4400MHz ECC DDR5 UDIMM
Note
Support ECC/Non-ECC DDR5 UDIMM. ECC function are supported on Intel Select SKUs.
Memory Voltage
1.1 V
Error Detection
ECC
On-Board Devices
Chipset
Intel W680
Network Connectivity
1x 1GbE BaseT with Intel i219LM
1x 2.5GbE BaseT with Intel i225V
Input / Output
SATA
8 SATA (3Gbps) port(s)
USB
3 USB 3.2 Gen 1 port(s) (2 front Type A 1 front Type C)
3 USB 3.2 Gen 2x1 port(s) (3 rear Type A)
1 USB 3.2 Gen 2x2 port(s) (1 rear Type C)
Serial Port
1 COM Port(s) (1 header)
System BIOS
BIOS Type
AMI 256MB SPI Flash
Management
Software
SuperDoctor 5
Power Configurations
ACPI 6.0
PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
Mid-Tower
Model
CSE-735D4-668B
Available Color
Black

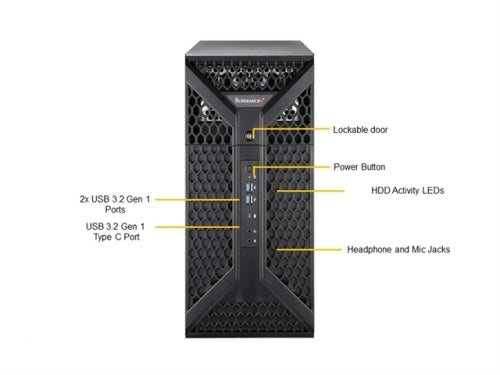

Front Panel
Buttons
Power On/Off
LEDs
HDD activity
Power On
Port
Headphone Jack
Microphone Jack

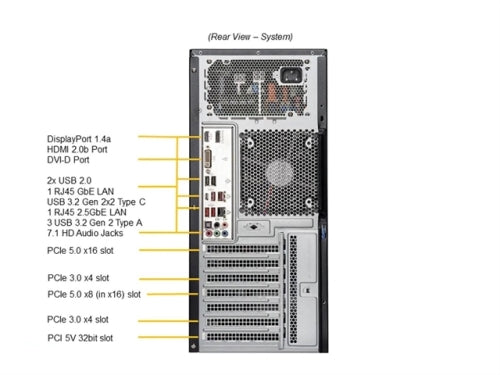

Expansion Slots
PCI-Express (PCI-E)
Slot 1: 5V PCI 32bit
Slot 2: PCI-E 3.0 x4
Slot 4: PCI-E 5.0 x16
Slot 5: PCI-E 3.0 x4
Slot 7: PCI-E 5.0 x16
(Slot Number 4 and Slot Number 7 can be configured as 16/NA or 8/8)
Drive Bays / Storage
Drive Bays
4x 3.5" SATA drive bays
M.2
3x PCI-E 4.0 x4 (2280 only)
Peripheral Bays
2x 5.25" drive bays
System Cooling
Fans
1x 120mm Fan(s)
1x 120mm Fan(s) (optional)
Power Supply
668W 80PLUS Platinum PS/2 Power Supply
Dimension (W x H x L)
150 x 86 x 190 mm
AC Input
100-240Vac / 50-60Hz
+12V
Max: 54A (100Vdc-240Vdc)
Output Type
PS/2
Certification
Platinum Level
Operating Environment
Environmental Spec.
Operating Temperature:
10oC - 35oC (50oF - 95oF)
Non-operating Temperature:
-40oC to 60oC (-40oF to 140oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
