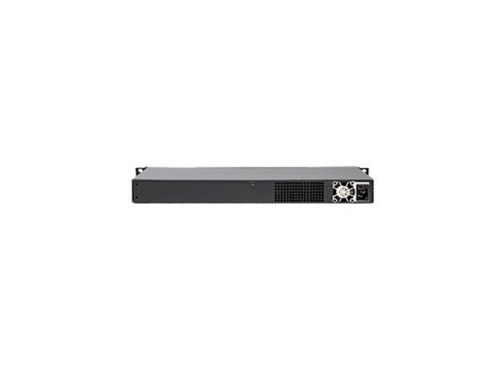

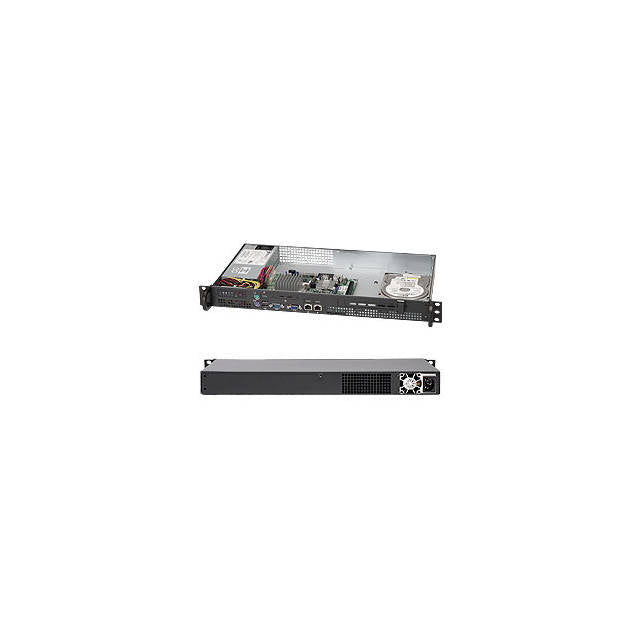

Supermicro Rackmount Case CSE-503L-200B 200W 1U Low Noise I/O 3.5inch Drive Bay Black Retail
Supermicro Rackmount Case CSE-503L-200B 200W 1U Low Noise I/O 3.5inch Drive Bay Black Retail
New
Supermicro Rackmount Case CSE-503L-200B 200W 1U Low Noise I/O 3.5inch Drive Bay Black Retail
Supermicro Rackmount Case CSE-503L-200B 200W 1U Low Noise I/O 3.5inch Drive Bay Black Retail

Supermicro Rackmount Case CSE-503L-200B 200W 1U Low Noise I/O 3.5inch Drive Bay Black Retail

$141.49
SHARE
Form Factor:
9.8"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6"
Processor Support:
Single Processor Support:Intel Atom series processor, Celeron 400 series up to 35W
Dimensions:
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
9.8" (249mm)
Packaging
25.8" (W) x 6.1" (H) x 18.3" (L)
Gross Weight
10 lbs (4.5kg)
Available Colors
Black
Expansion Slots:
1x full-height half-length PCI expansion slot (Optional) Riser Card Required
Drive Bays:
Internal Bay:
1x 3.5" Internal Drive Bay (Standard)
OR 2x 2.5" Internal Drive (Optional)
OR 1x 2.5" (Optional)
SAS or enterprise SATA HDD only recommended
Front Panel:
Buttons :
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
I/O Ports:
Standard System I/O
(Mouse, Keyboard, 2x USB Video, COM, LPT, LAN)
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage:
100 - 240V, 50-60Hz, 3-1.5 Amp Max
+5V:
16.0 Amp
+5V standby:
2.0 Amp
+12V:
15.0 Amp
-12V:
0.8 Amp
+3.3V :
17.0 Amp
Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
CCC Certification
EN 60950/IEC 60950-Compliant
Europe/CE Mark
Germany - TUV Certified
