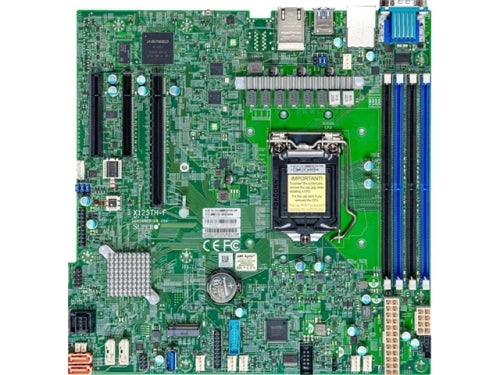

Supermicro Motherboard MBD-X12STH-F-B E-2300 S1200 H5 C256 128G DDR4 MicroATX Bulk Pack
New
Supermicro Motherboard MBD-X12STH-F-B E-2300 S1200 H5 C256 128G DDR4 MicroATX Bulk Pack

Supermicro Motherboard MBD-X12STH-F-B E-2300 S1200 H5 C256 128G DDR4 MicroATX Bulk Pack

$399.49
SHARE
MPN
MBD-X12STH-F-B
Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores, 16 threads
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz SDRAM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C256
SATA
Intel C256 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel Ethernet Controller I210
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 port(s) (4 via header 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header 2 rear 1 type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
SuperDoctor 5, NMI, SUM, SPM, Intel Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
6x 4-pin fan headers (up to 6 fans)
Thermal control tachometer fan connectors
Fan speed control
6 fans with tachometer status monitoring
Overheat LED indication
Other Features
WOL
UID
Node Manager Support
M.2 NGFF connector
Dual Cooling Zones
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion header
Chassis intrusion detection
ACPI power management
Operating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
