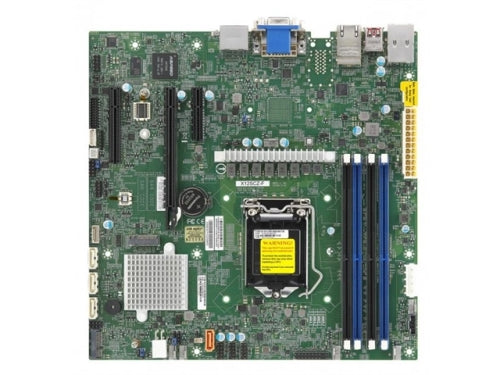

Supermicro Motherboard MBD-X12SCZ-F-B W480 LGA-1200 128GB DDR4 HDMI/DisplayPort microATX Bulk Box
Supermicro Motherboard MBD-X12SCZ-F-B W480 LGA-1200 128GB DDR4 HDMI/DisplayPort microATX Bulk Box

Supermicro Motherboard MBD-X12SCZ-F-B W480 LGA-1200 128GB DDR4 HDMI/DisplayPort microATX Bulk Box

$444.99
SHARE
Physical Stats
Form Factor
microATX

Processor/Cache
CPU
10th Generation Intel CoreTM i9/CoreTM i7/CoreTMi5/CoreTMi3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Cores / Cache
Up to 10 cores
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Intel W480
SATA
Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT
Audio
ALC 888S HD Audio
Graphics
Aspeed AST2500 BMC, Intel HD Graphics

Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 ports (6 via headers)
6 USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers)
Video Output
1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Serial Port / Header
2 COM Ports (1 header)
TPM
TPM Header and Chip both

Expansion Slots
PCI-E
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x4
M.2
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230

System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup

Management
Software
AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
+12V DC Power Input
ATX Power connector
ACPI Power Management

PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 -fan status, Chassis intrusion header, CPU, Memory, PCH temperature, VBAT
FAN
5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control
Temperature
Thermal Control for 5 Fan Connectors
LED
Power LED, BMC/IPMI Heartbeat LED, UID/Remote UID
Other Features
12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Dual Cooling Zones, M.2 NGFF connector, RoHS, UID

Operating Environment
Operating Temperature Range
0oC - 60oC (32oF - 140oF)
Non-Operating Temperature Range
-40oC - 85oC (-40oF - 185oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
