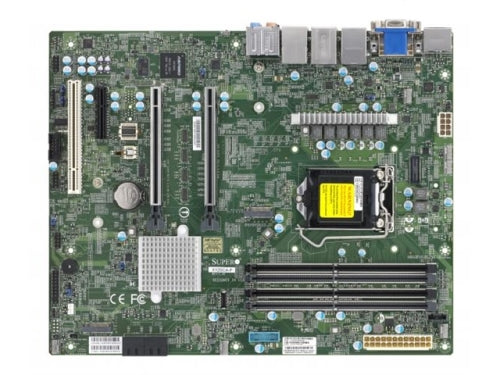

Supermicro Motherboard MBD-X12SCA-F-O W480 LGA-1200 128GB DDR4 HDMI/DisplayPort ATX Retail
New
Supermicro Motherboard MBD-X12SCA-F-O W480 LGA-1200 128GB DDR4 HDMI/DisplayPort ATX Retail

Supermicro Motherboard MBD-X12SCA-F-O W480 LGA-1200 128GB DDR4 HDMI/DisplayPort ATX Retail

$426.49
SHARE
Physical Stats
Form Factor
ATX

Processor/Cache
CPU
10th Generation Intel CoreTM i9/CoreTM i7/CoreTM/CoreTM/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
Cores / Cache
Up to 10 cores

System Memory
Memory Capacity
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type
Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V

On-Board Devices
Chipset
Intel W480
SATA
Intel W480 controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI
ASPEED AST2500
Dedicated IPMI LAN Port
Network Controllers
Single LAN with Intel PHY I219LM LAN controller for AMT/vPro Single LAN with Intel Ethernet i225LM
Audio
ALC 888S HD Audio
Graphics
VGA port is dedicated for IPMI

Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
2 USB 2.0 ports (2 via headers)
3 USB 3.2 Gen1 ports (1 via header + 2 Type A)
5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)
Video Output
1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,
VGA port is dedicated for IPMI
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header

Expansion Slots
PCI-E
1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 and 1
Form Factor: 2280/22110
Key: M-Key

System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later

Management
Software
AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SSM, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software
SuperDoctor 5
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
Power button override mechanism
Wake-on-LAN
Power supply monitoring

PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, LAN temperature, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature
FAN
5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Single cooling zone
Temperature
N/A
LED
BMC/IPMI Heartbeat LED, UID/Remote UID, Power LED, Catastrophic Error LED
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, UID, WOL

Operating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
