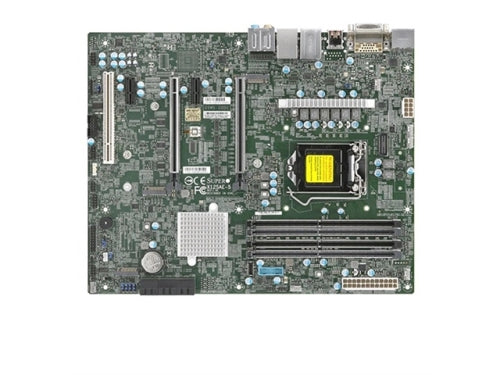

Supermicro Motherboard MBD-X12SAE-5-B W580 S1200 H5 Max128GB DDR4 ATX Bulk
Supermicro Motherboard MBD-X12SAE-5-B W580 S1200 H5 Max128GB DDR4 ATX Bulk

Supermicro Motherboard MBD-X12SAE-5-B W580 S1200 H5 Max128GB DDR4 ATX Bulk

$425.49
SHARE
MPN
MBD-X12SAE-5-B
Physical Stats
Form Factor
ATX
Dimension
12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
10th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor, 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1200 Processors, Intel Xeon W-1300 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Core
Up to 8 cores
System Memory
Memory Capacity
4 DIMM slots
128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz
Memory Type
128GB 3200MHz
DIMM Sizes
2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel W580
SATA
Intel W580 controller for 4 SATA3 (6 Gbps) ports RAID 0,1,5,10
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel PHY I219LM LAN controller
Single LAN with Intel Ethernet i225V, for AMT/vPro
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 3.2 Gen2 port(s) (4 rear type A)
2 USB 3.2 Gen1 port(s) (2 via header)
2 USB 2.0 port(s) (2 via header)
2 USB 3.2 Gen2x2 port(s) (1 rear type C 1 via header)
Video Output
1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 4.0 x16 slots (16/NA or 8/8),
2 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2
M.2 Interface: 1 PCI-E 4.0 x4, RAID 0 and 1 2 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
RAID 5 only applied for INTEL Storage Device
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
Software
SuperDoctor 5, SUM, SSM, AMT, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
PC Health Monitoring
Voltage
VBAT, System temperature, PCH temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion detection
ATX Power connector
ACPI power management
8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-20oC - 60oC (-4oF - 140oF)
